Delete Camera

Keep Both Sides Tidy Automatically

Introduction

Available in both Auto (Pair Servers) and Manual (Map Cameras) modes, the Delete Camera block ensures that device removals are mirrored across your redundant estate:

• Backup mode: Drop a camera from a Primary, and the same device is removed from its linked Secondary, releasing the RMF licence.

• Restore mode: Deleting the camera on the Secondary erases it from its one-to-one paired Primary as soon as the Primary reconnects.

No orphaned devices, no wasted licences, and no manual clean-up.

Scope

The feature is limited to RMF-licensed cameras.

Enable

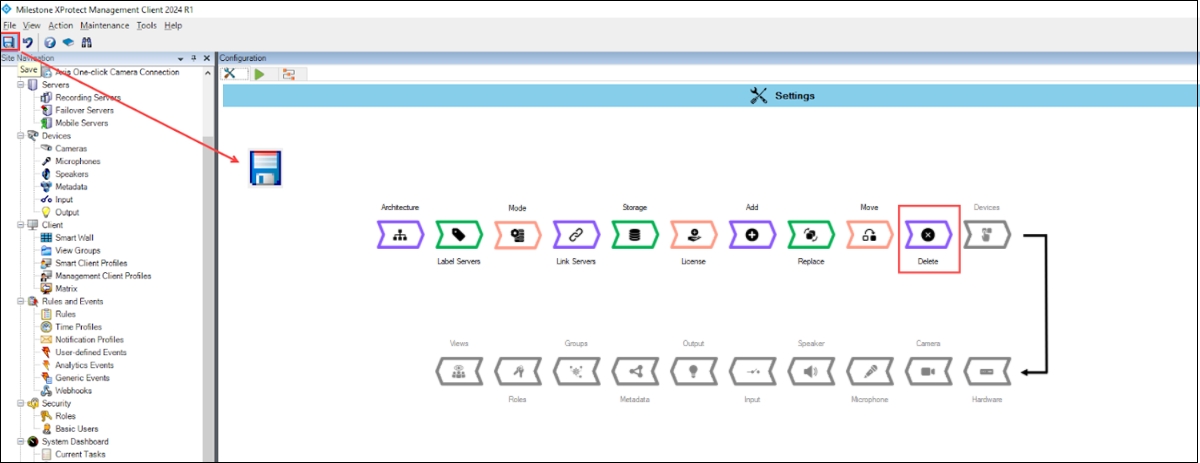

1. Click the Delete block.

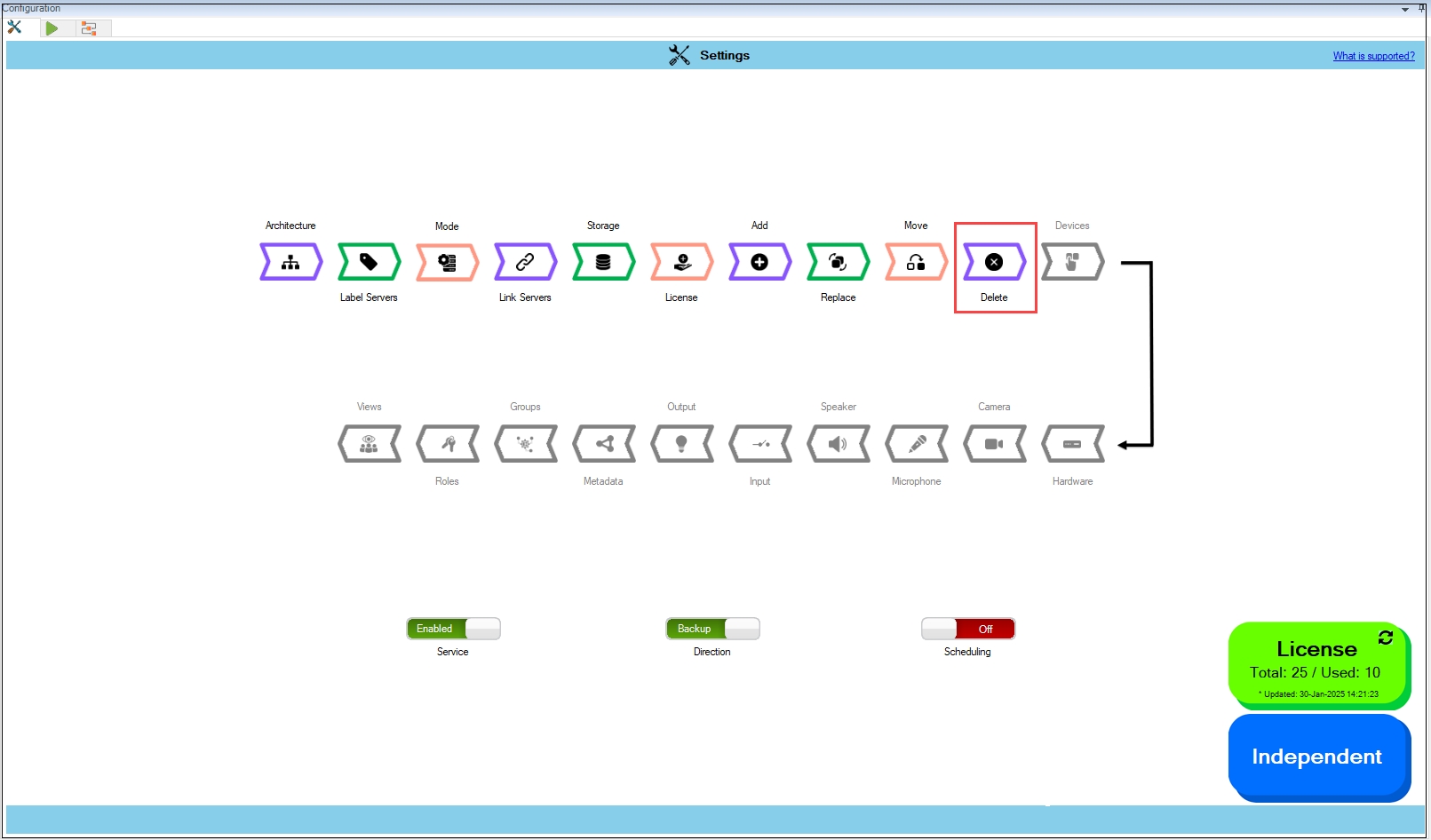

Delete Option

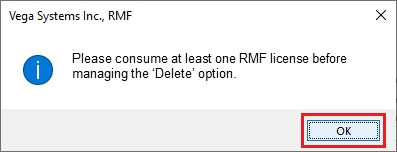

Note: The RMF system must consume and manage at least one license. Otherwise, the following screen will appear.

Delete Camera—Note

Step Result: The Delete Settings dialog box appears.

Delete Toggle—Disabled

1. Move the toggle button to enable and click the Save icon.

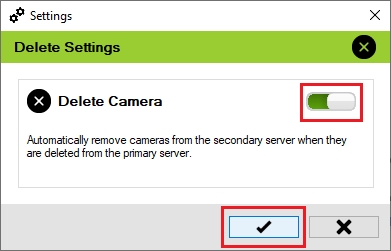

Delete Toggle—Enabled

1. Click Save in the Milestone toolbar to save the changes.

Save Icon—Milestone Toolbar
