Synchronize Groups

Synchronize device groups.

About

Enabling this feature causes synchronization of device groups of all types between the primary and secondary data centers.

Note:

• Devices can belong to more than one group.

• It's imperative that each device is added to at least one group. Otherwise, RMF cannot manage the device.

Scope

The scope is limited to RMF-licensed devices selected by the Device Selectionblock and encompasses the features listed under the "Settings here correspond to" section in the picture below. The direction of synchronization depends on the direction setting. See Set Synchronization Direction.

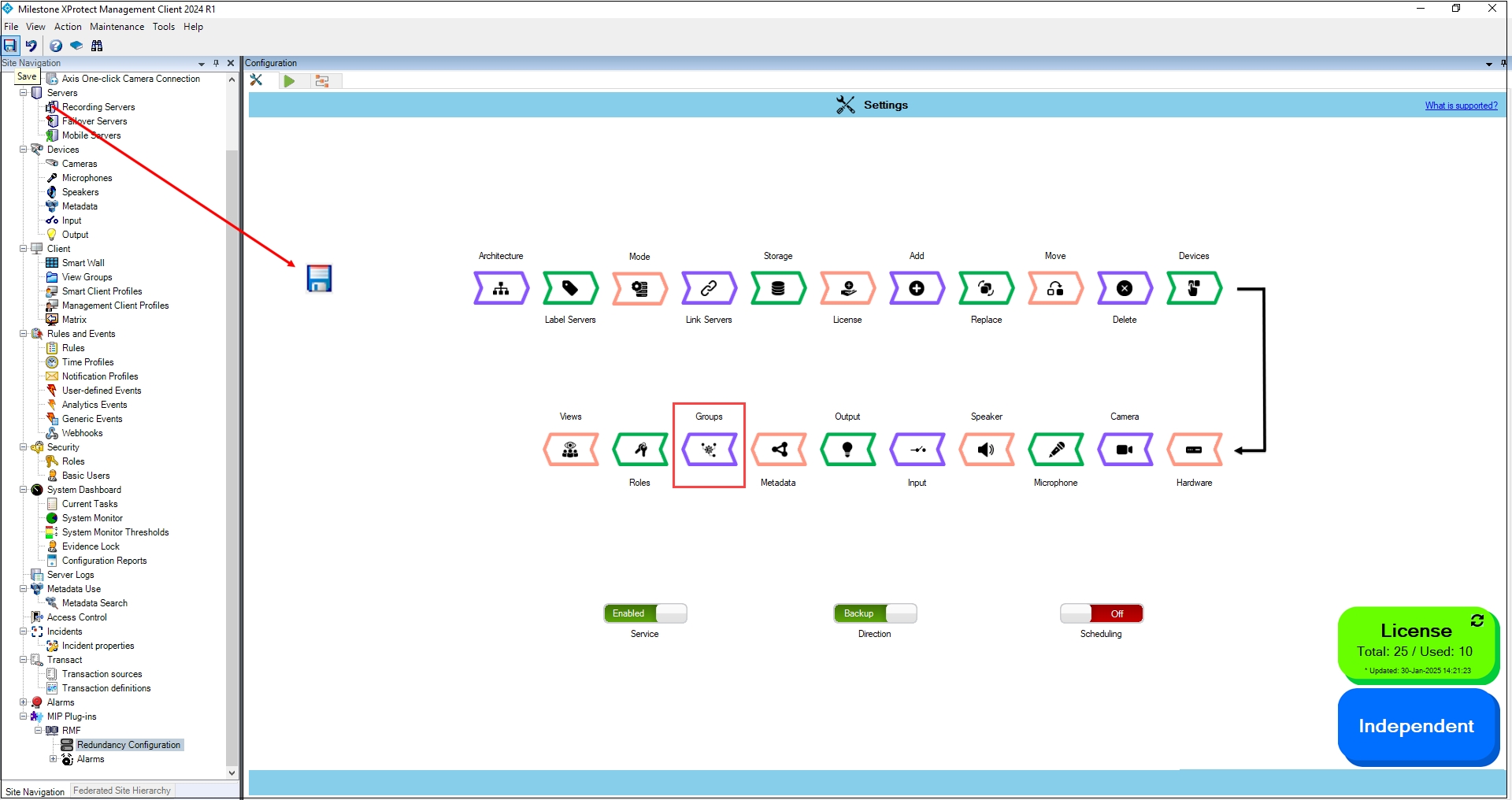

View Group Settings—Site Navigation Pane

Enable

To synchronize the device groups, perform the following steps:

1. Click Groups.

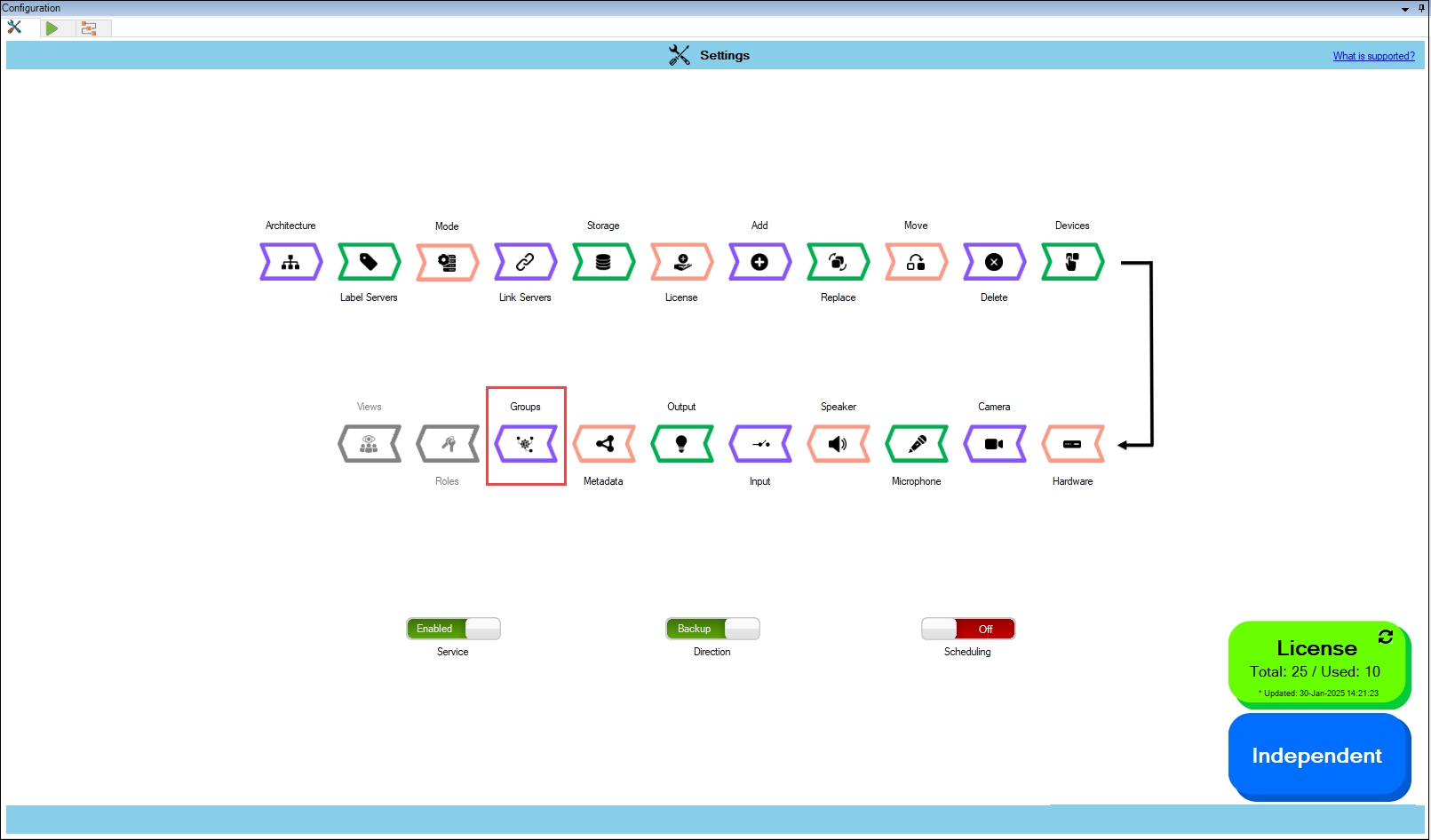

Groups Option

Step Result: The Groups Settings screen appears. All device groups are enabled by default.

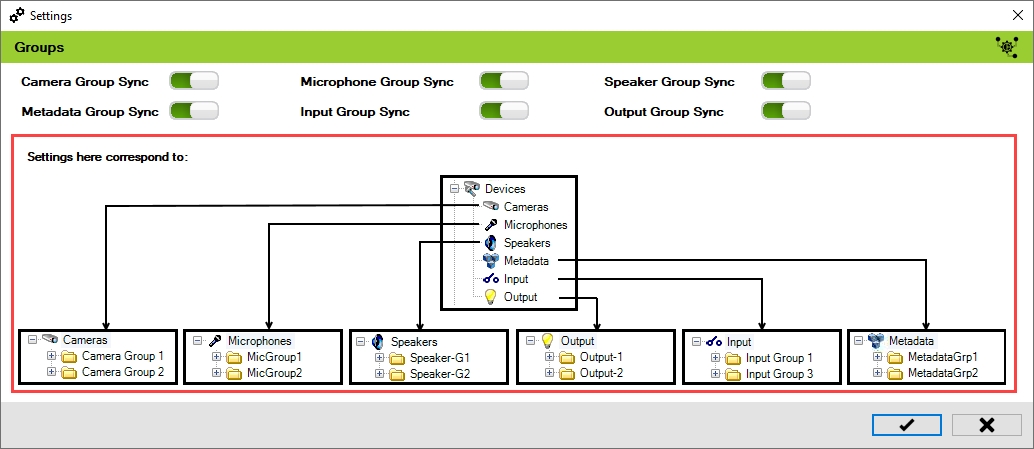

Groups Settings Screen

1. Click the Save button to continue.

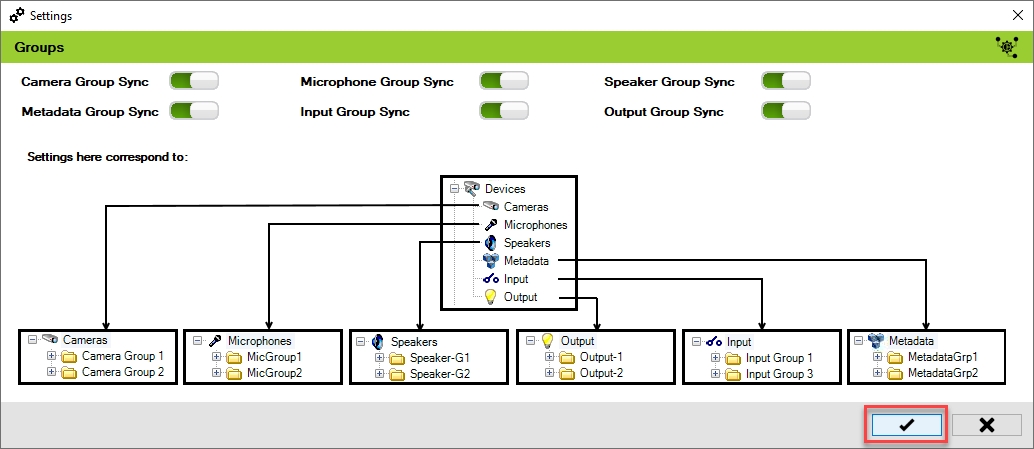

Save Button

1. Click Save in the Milestone toolbar to save the changes.

Save Icon—Milestone Toolbar

Disable

To turn off the synchronization of groups:

1. Move the toggle button to display red and click the Save icon.

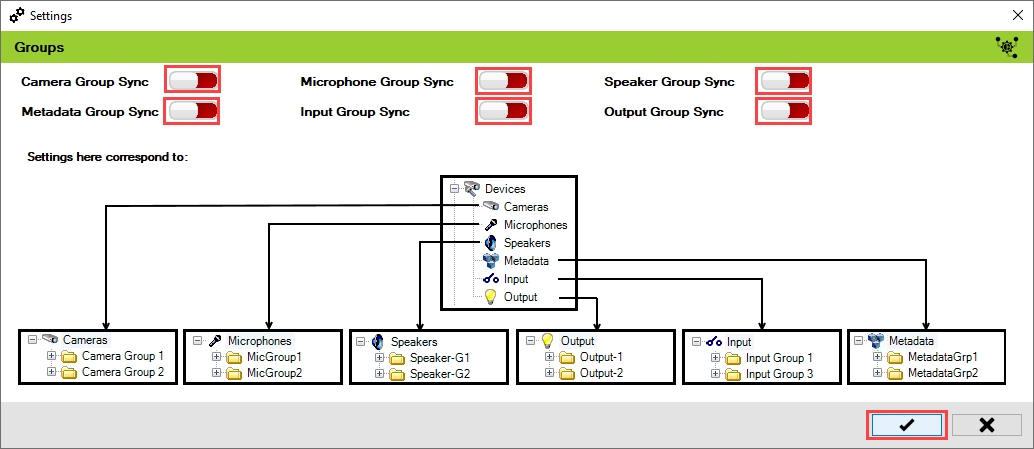

Disable the Group Settings

Note: The following screen appears, prompting you to click the Save button in the

Milestone toolbar.

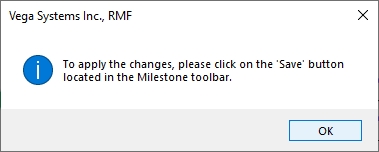

Confirmatory Dialog Box

1. Click Save in the Milestone toolbar to save the changes.

Save Icon—Milestone Toolbar

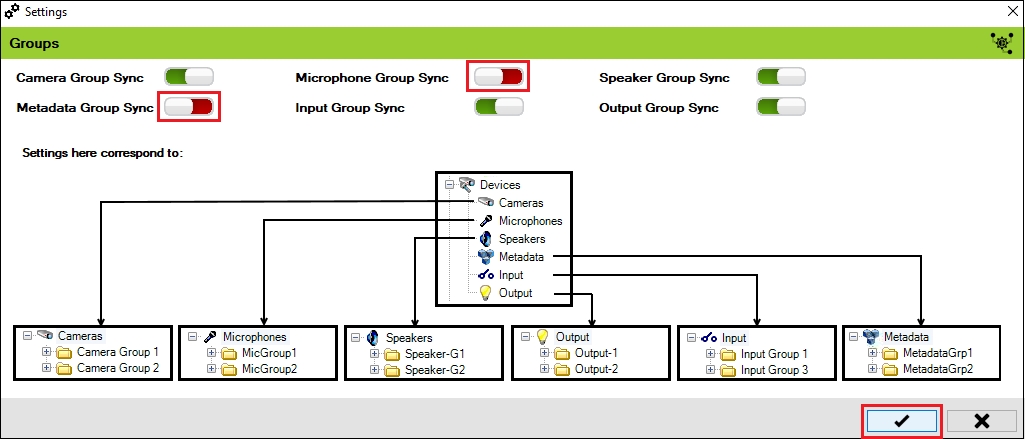

1. If all group settings are disabled, as shown in the following screenshot, then the Groups option in the configuration screen is also disabled.

Note: This block is also disabled under the following conditions.

1. No devices are selection under device selections.

2. No devices have RMF licenses assigned to them.

Group Settings Disabled

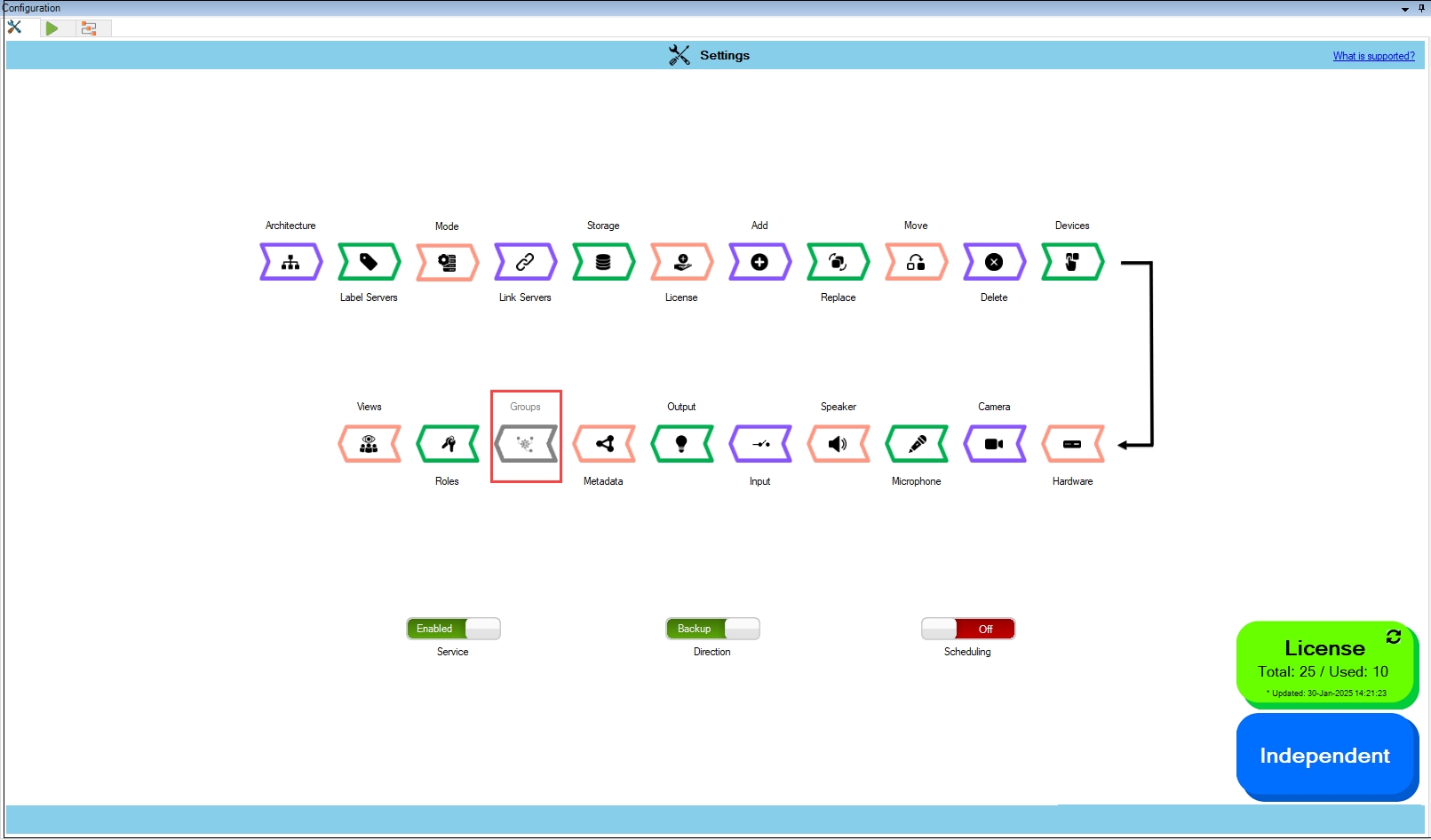

Groups Option Disabled
