Precision Synchronization for Microphone Settings.
About
Use this option to synchronize Microphone settings between Primary and Redundant sites.
Scope
The scope of action is limited to RMF-licensed devices selected in the Device Selection section. The direction of synchronization depends on the direction setting. See Set Synchronization Direction. If no devices are selected in the Device Selection block, this option is disabled.

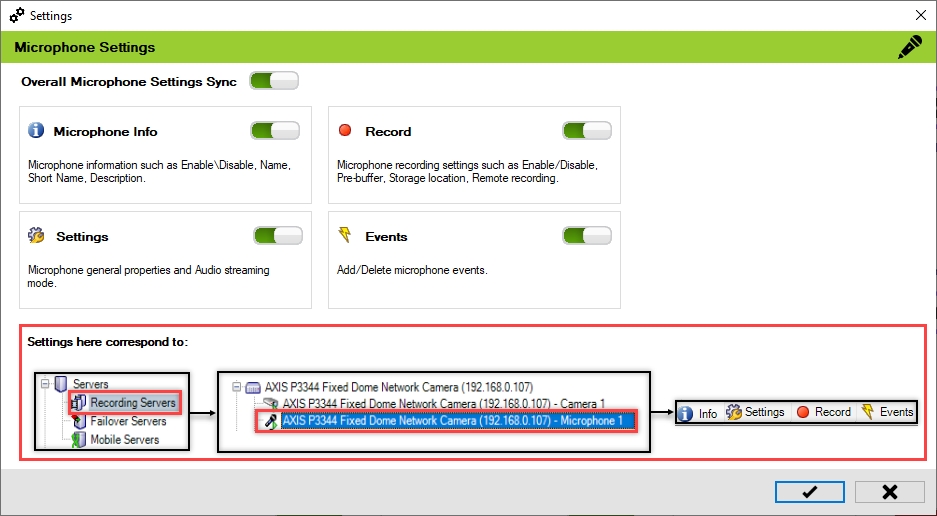

Please see the "Settings here correspond to" section in the picture below to understand which XProtect features this screen synchronizes.

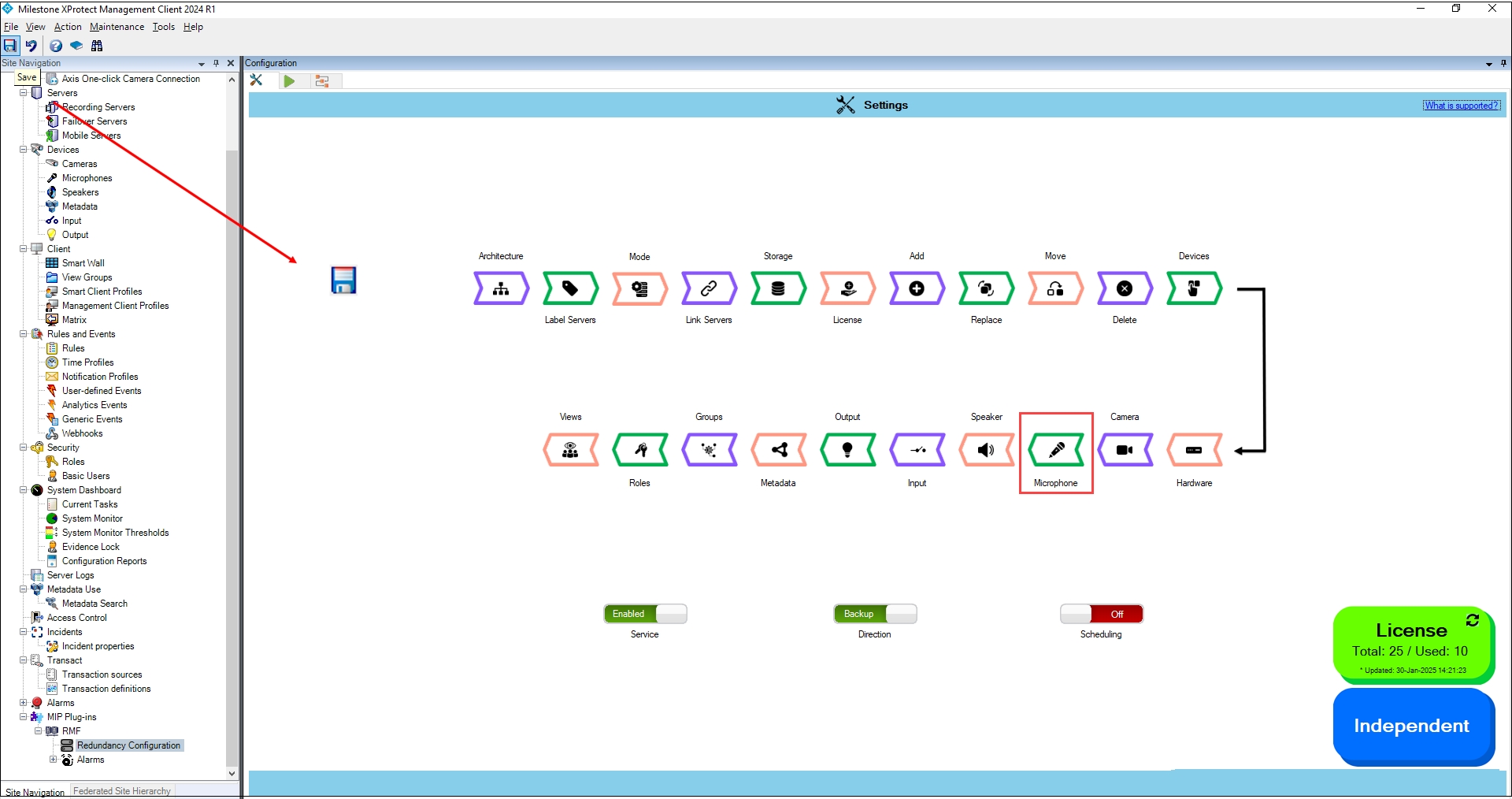

View Microphone Settings—Site Navigation Pane
Enable
To enable microphone settings synchronization, perform the following steps:

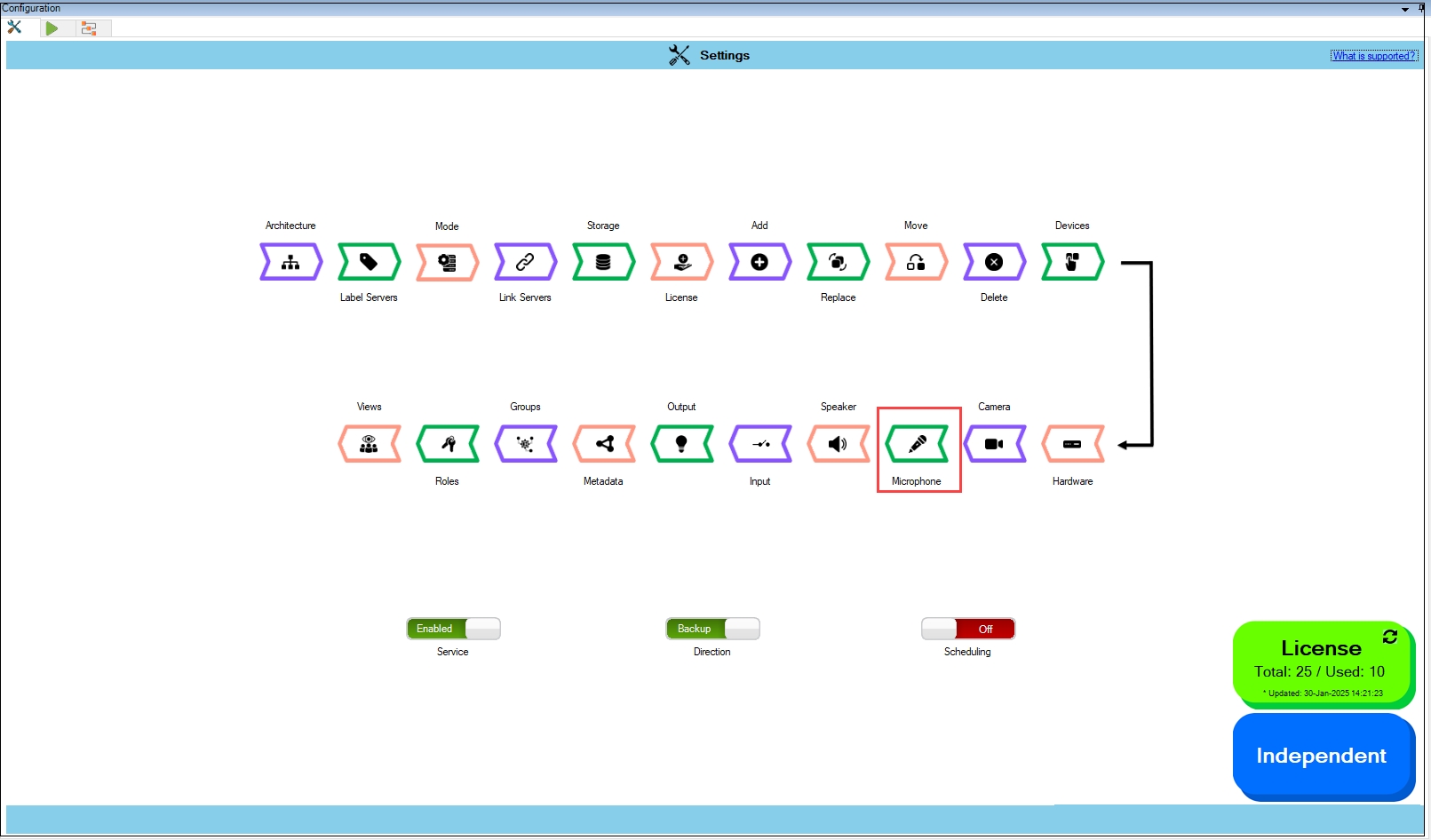

Click Microphone.
Note: For the Microphone block to be clickable, at least one device must be selected from the Devices section. For more information, refer to Device Selection
Microphone Option
Enable the Overall Microphone Settings Sync to enable all the individual microphone
settings. Enable/Disable different sub-settings as needed.

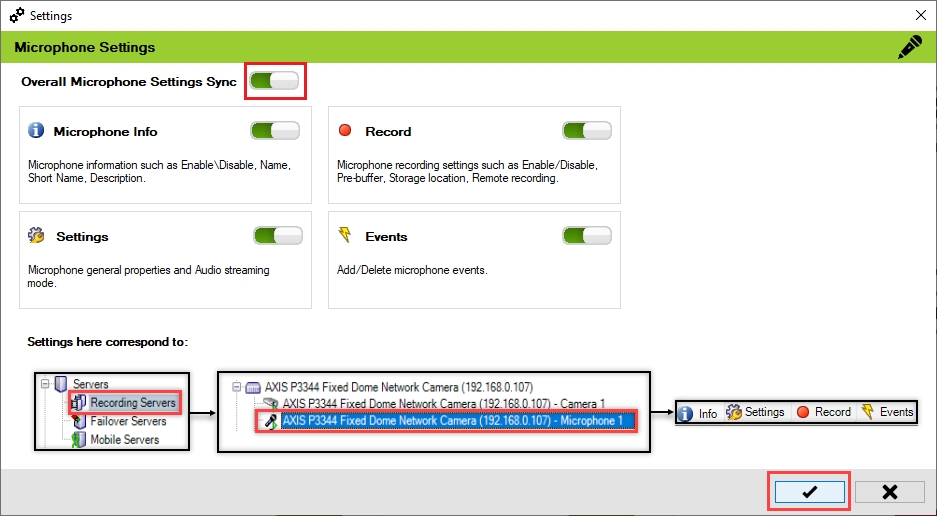

Microphone Settings Screen

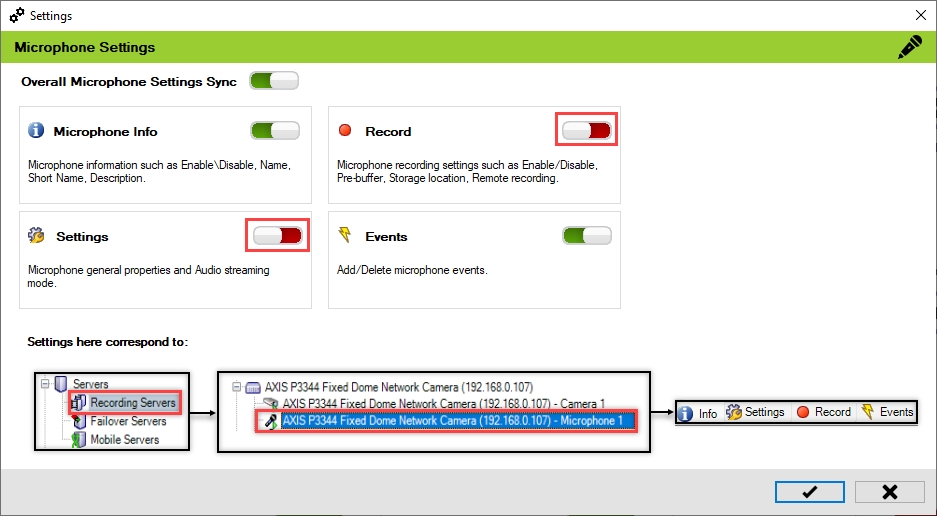

Synchronize the Required Microphone Settings
To retain the settings, click the Check Mark button.
Check Mark Button
Click Save in the Milestone toolbar to save the changes.
Save Icon—Milestone Toolbar
Disable
To turn off the Microphone settings synchronization, perform the following steps:
Click Microphone.

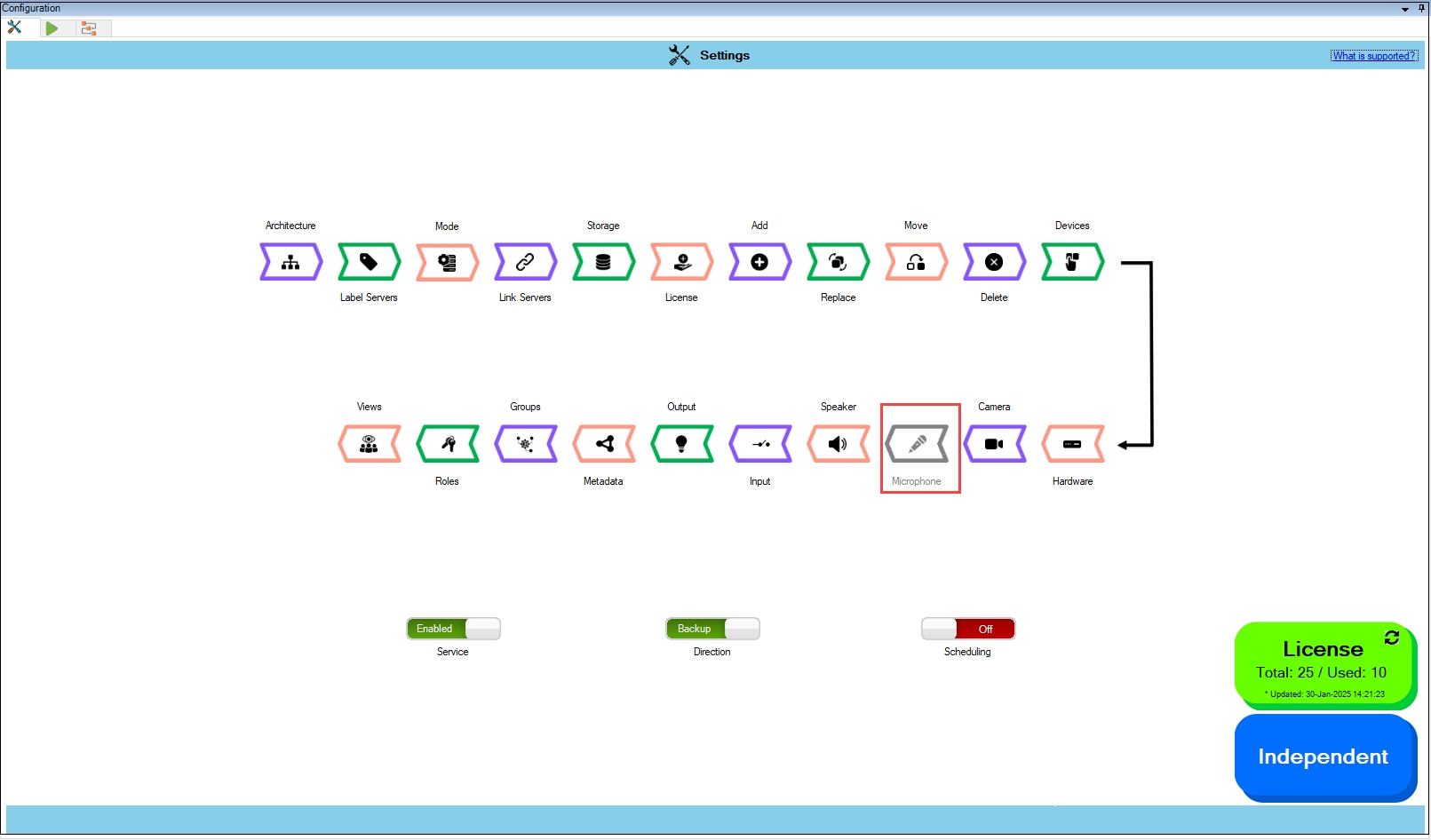

Microphone Option
To turn off the synchronization of the microphone settings, move the toggle button to display red and click the Save icon.

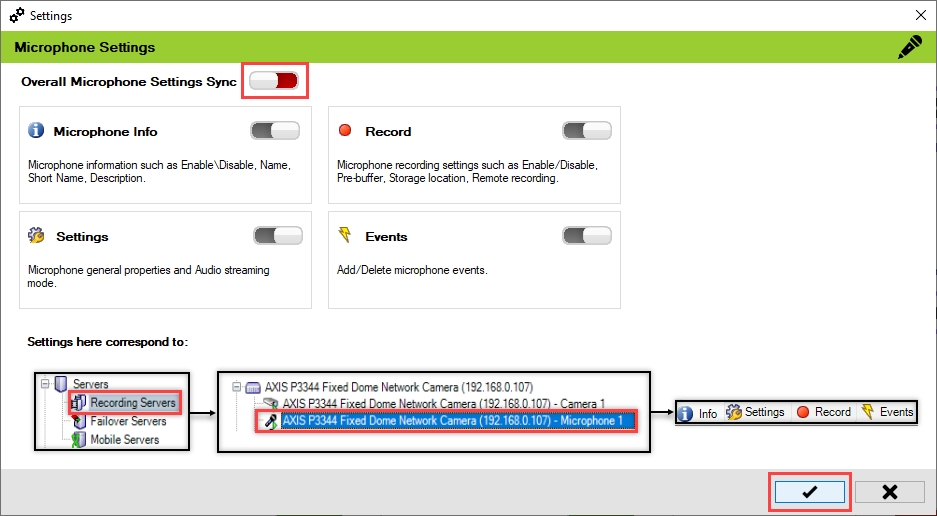

Microphone Settings Disabled
Click Save in the Milestone toolbar to save the changes.
