Use this option to synchronize Speaker settings between the Primary and Redundant sites.
Scope
The scope is limited to RMF-licensed devices selected by the Device Selection block and to the features listed under the "Settings here correspond to" section in the picture below. The direction of synchronization depends on the direction setting. See Set Synchronization Direction. If no devices are selected in the Device Selection block, this option is disabled.
View Output Settings—Site Navigation Pane
Enable
To enable and synchronize the device output settings, perform the following steps:

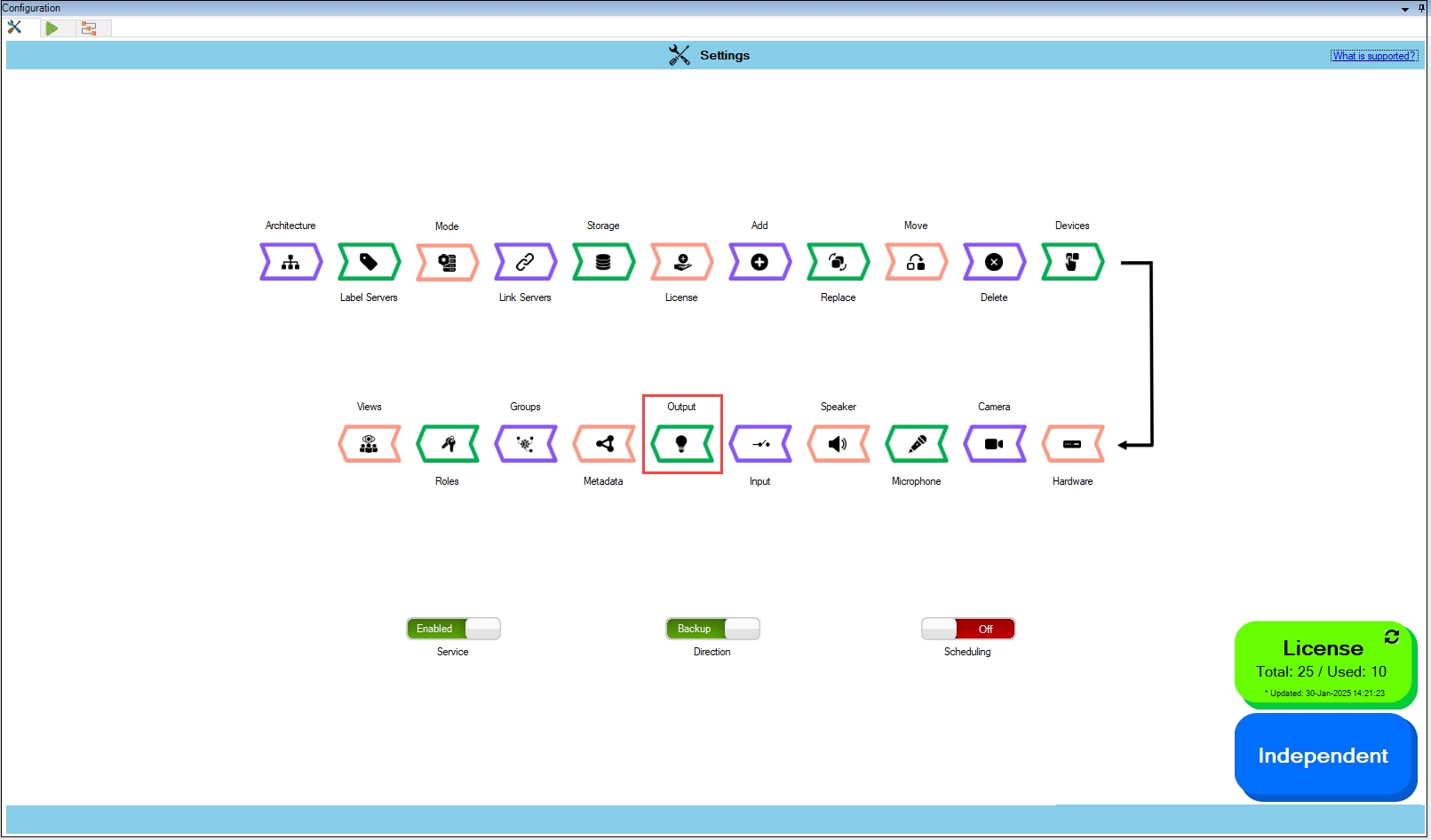

Click Output.
Note: For the Output block to be clickable, at least one device must be selected from the
Devices section. For more information, refer to Device Selection
Output Option

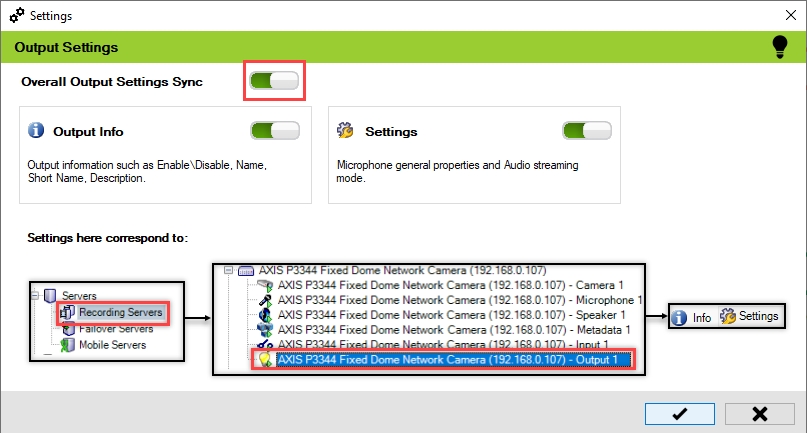

Enable the Overall Output Settings Sync to enable all the individual device output settings. Enable/Disable different sub-settings as needed.

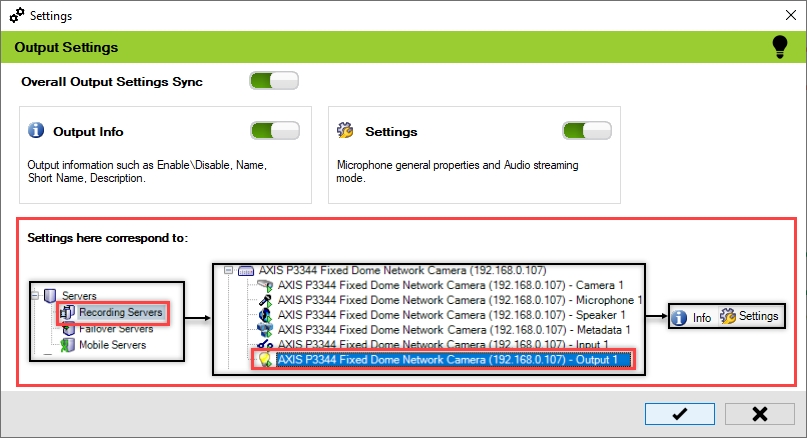

Output Settings Screen
Synchronize the Required Output Settings

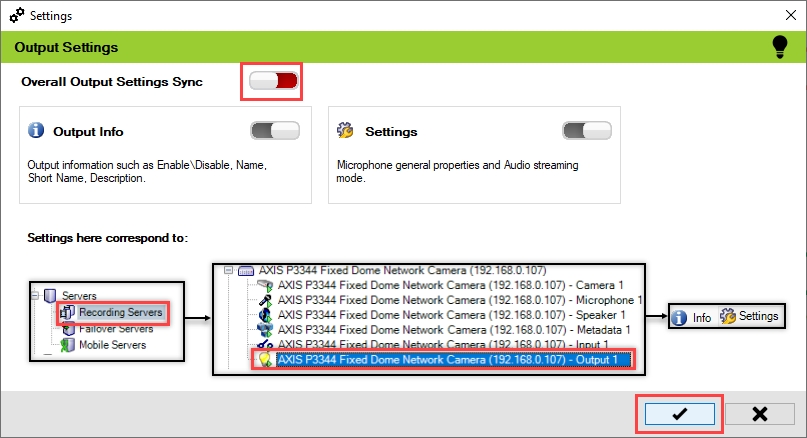

To retain the settings, click the Check Mark button.
Check Mark Button

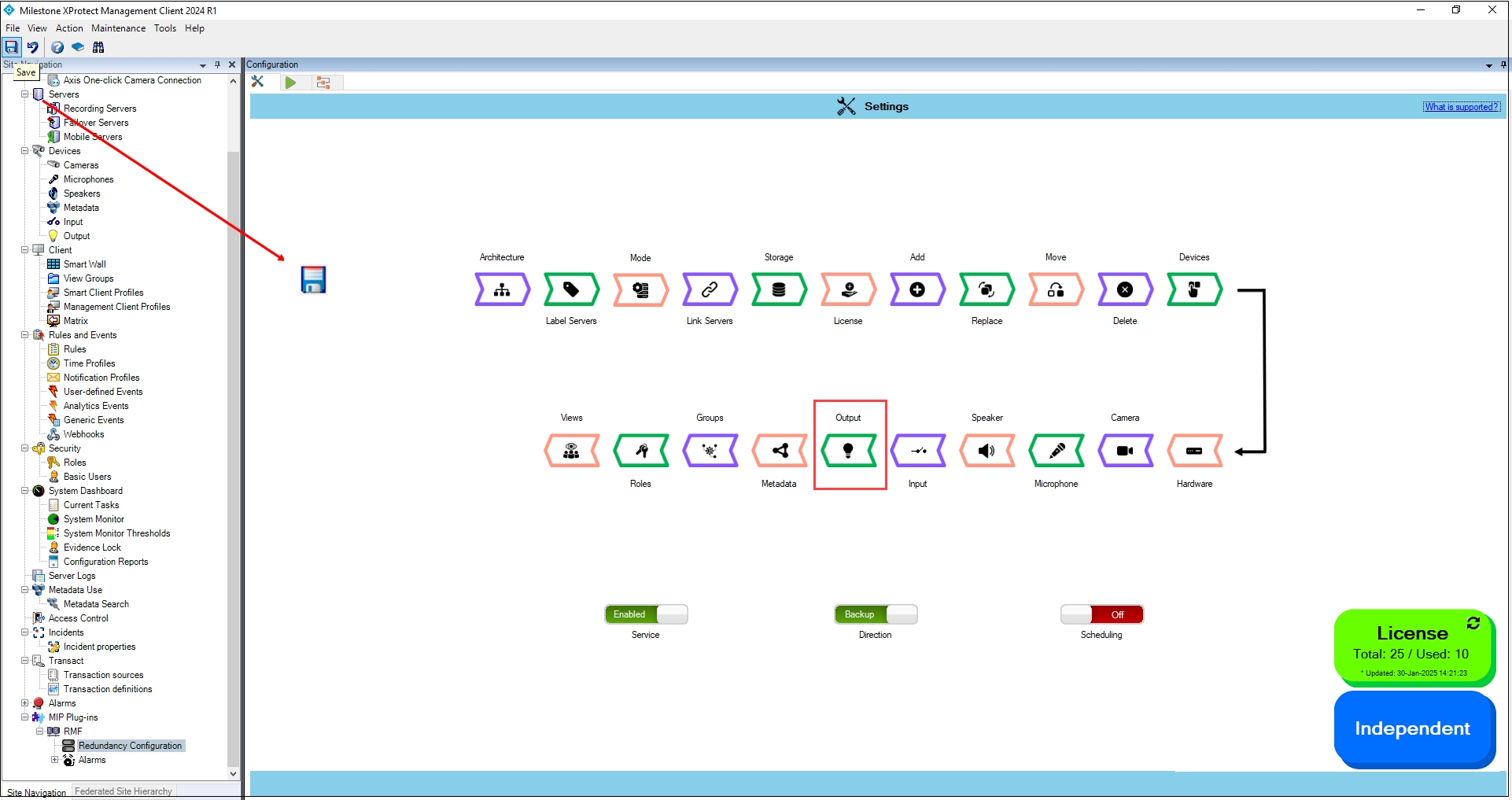

Click Save in the Milestone toolbar to save the changes.
Save Icon—Milestone Toolbar
Disable
To disable and synchronize the device output settings, perform the following steps:

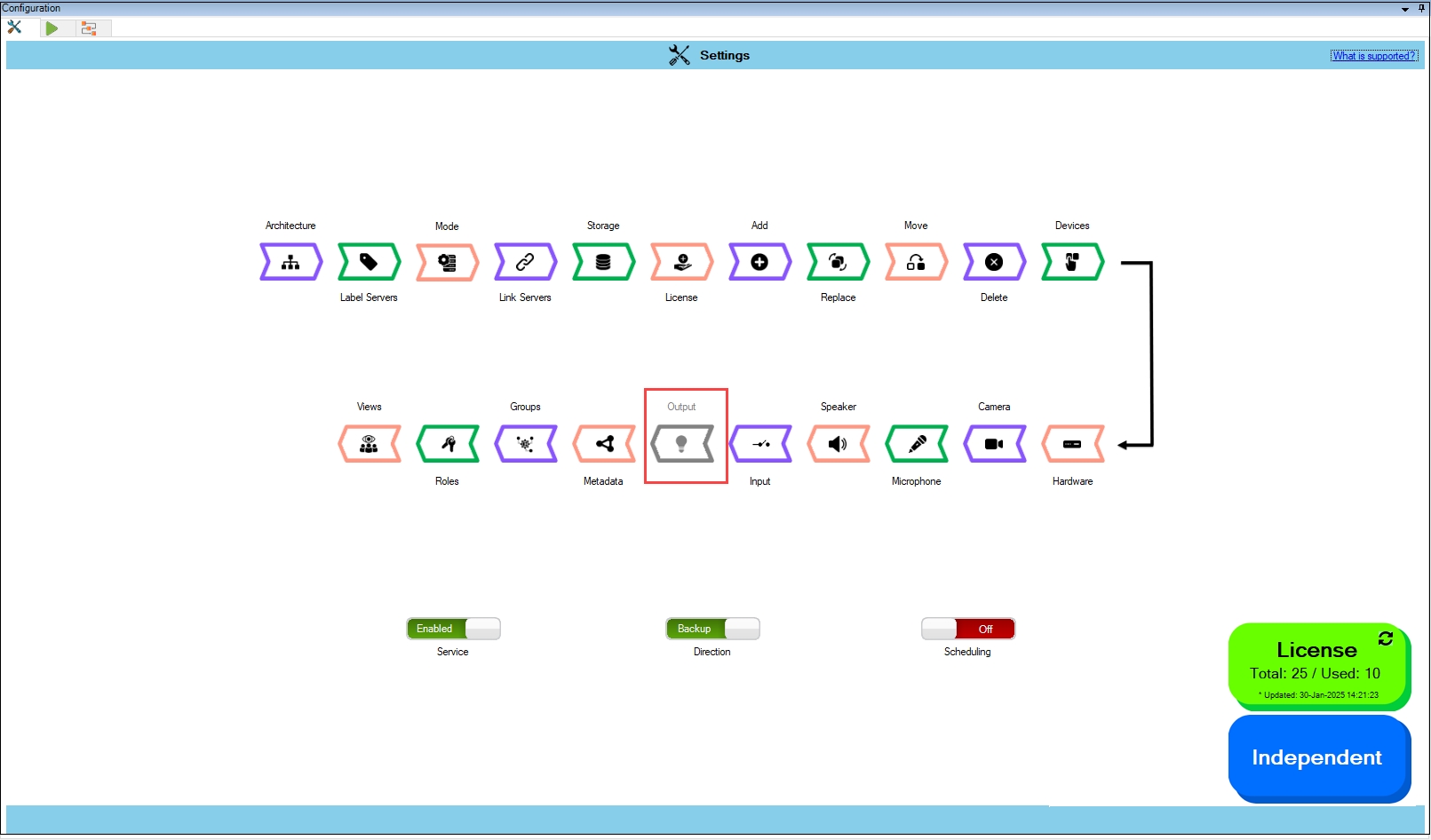

Click Output.
Note: For the Output block to be clickable, at least one device must be selected from the
Devices section. For more information, refer to Device Selection
Output Option
Enable the Overall Output Settings Sync to enable all the individual device output
settings. Enable/Disable different sub-settings as needed.

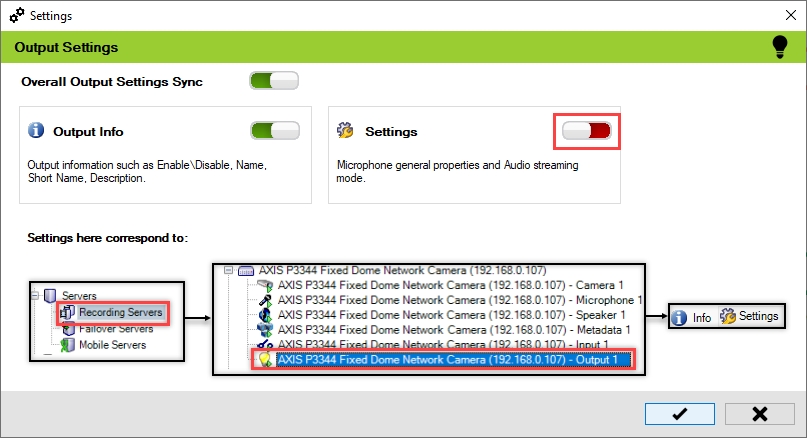

Output Settings Disabled
Click Save in the Milestone toolbar to save the changes.
Save Icon—Milestone Toolbar
Step Result: The Output settings option is disabled.
