Use this option to synchronize Speaker settings between the Primary and Redundant sites.
Scope
The scope is limited to RMF-licensed devices selected by the Device Selection block and to the features listed under the "Settings here correspond to" section in the picture below. The direction of synchronization depends on the direction setting. See Set Synchronization Direction. If no devices are selected in the Device Selection block, this option is disabled.

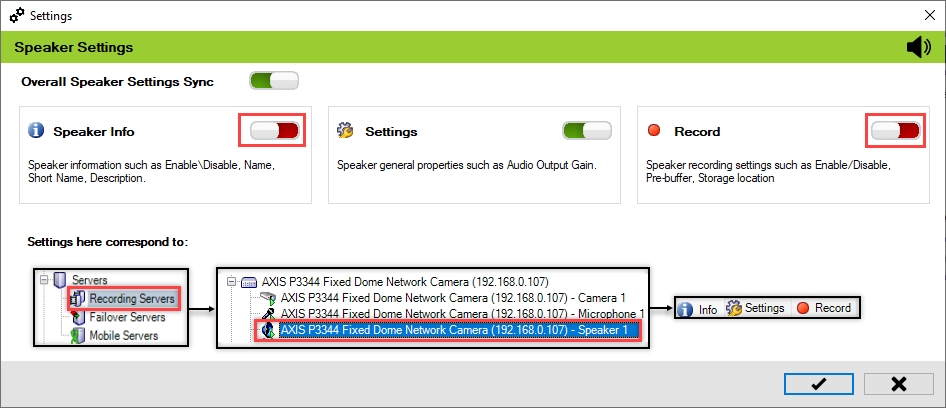

View Speaker Settings—Site Navigation Pane
Enable
To enable and synchronize the speaker settings, perform the following steps:
Click Speaker.
Note: For the Speaker block to be clickable, at least one device must be selected from the
Devices section. For more information, refer to Device Selection

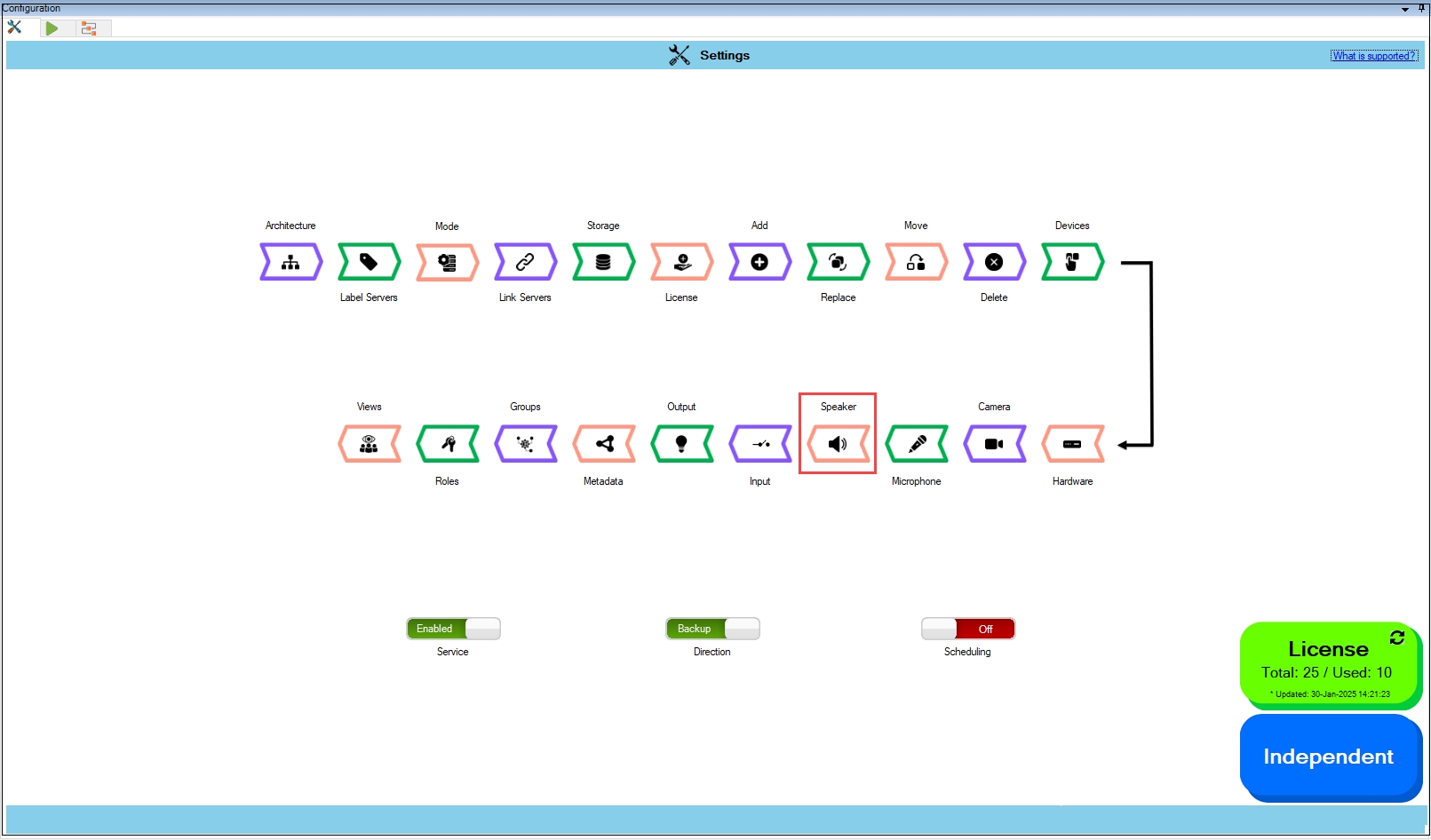

Speaker Option

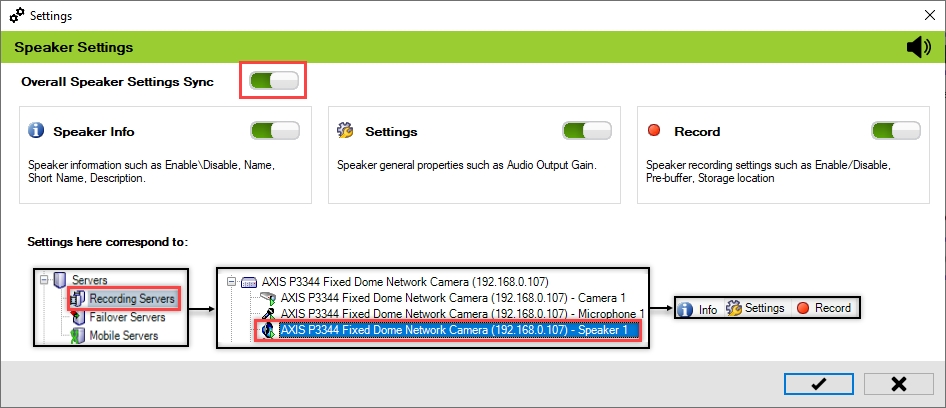

Enable the Overall Speaker Settings Sync to enable all the individual speaker
settings. Enable/Disable different sub-settings as needed.

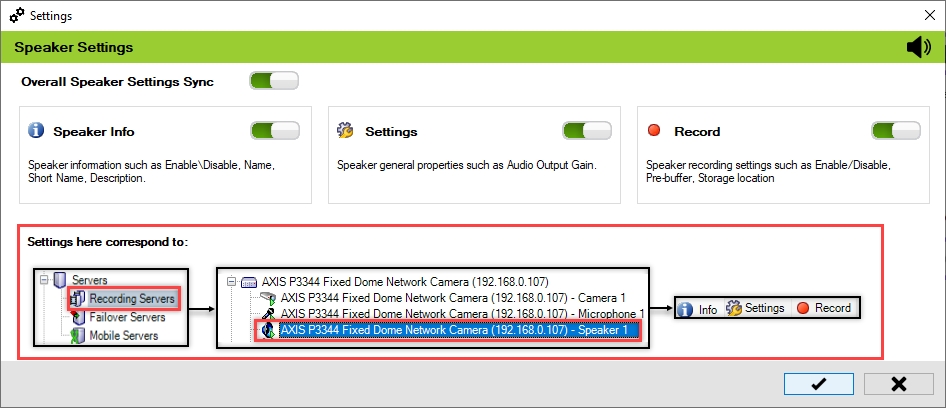

Speaker Settings Screen

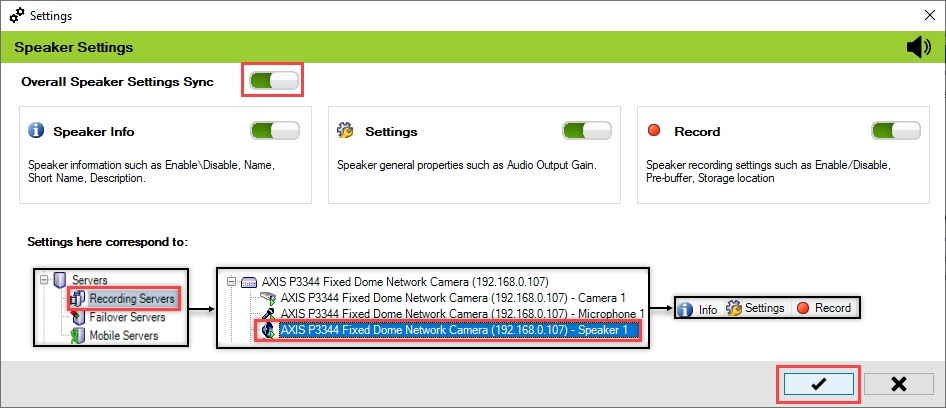

Synchronize the Required Speaker Settings
To retain the settings, click the Check Mark button.
Check Mark Button
Click Save in the Milestone toolbar to save the changes.

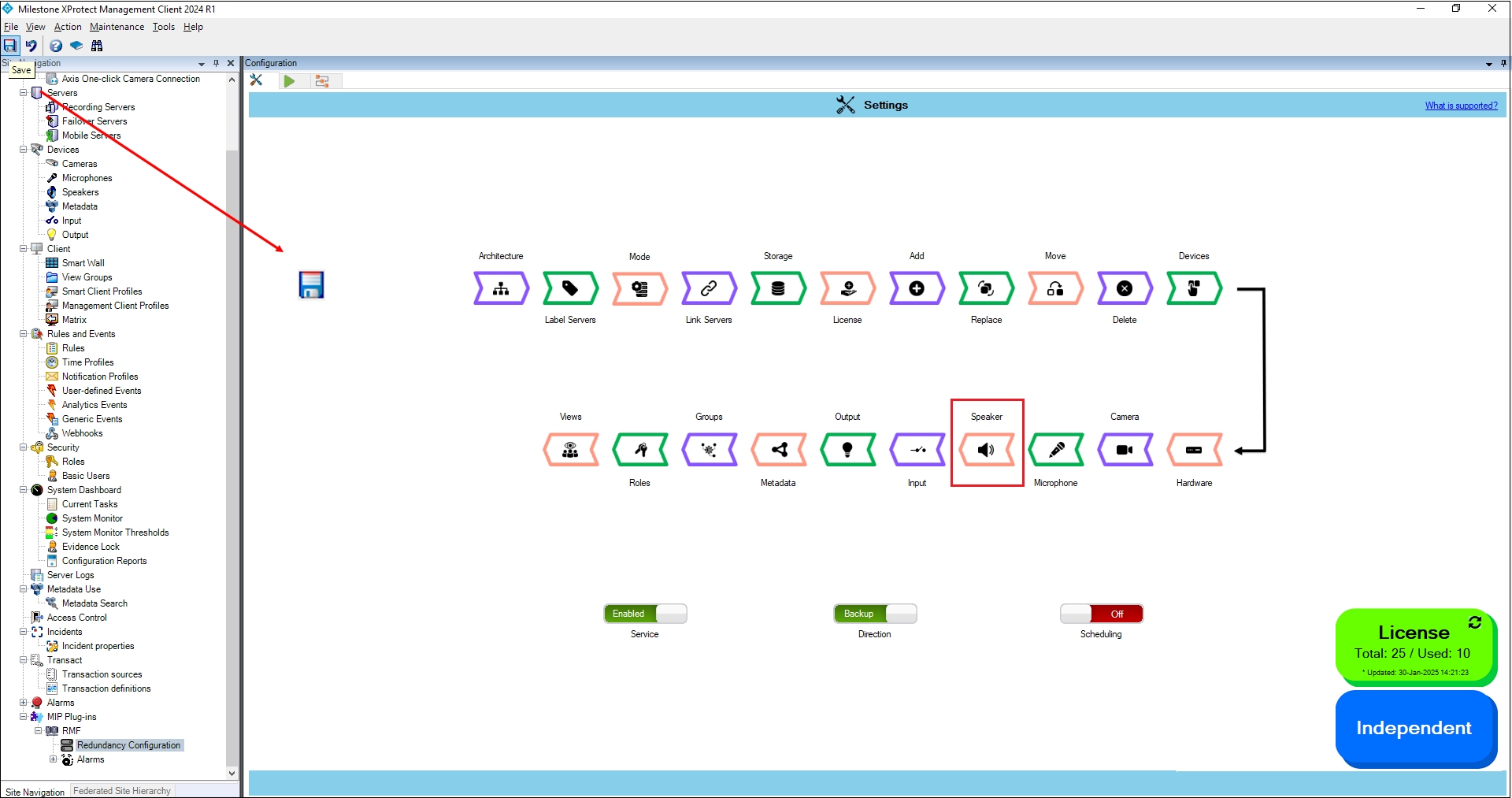

Save Icon—Milestone Toolbar
Disable
To turn off the Speaker settings synchronization, perform the following steps:
Click Speaker.
Speaker Option
To turn off the synchronization of the microphone settings, move the toggle button to display red and click the Save icon.

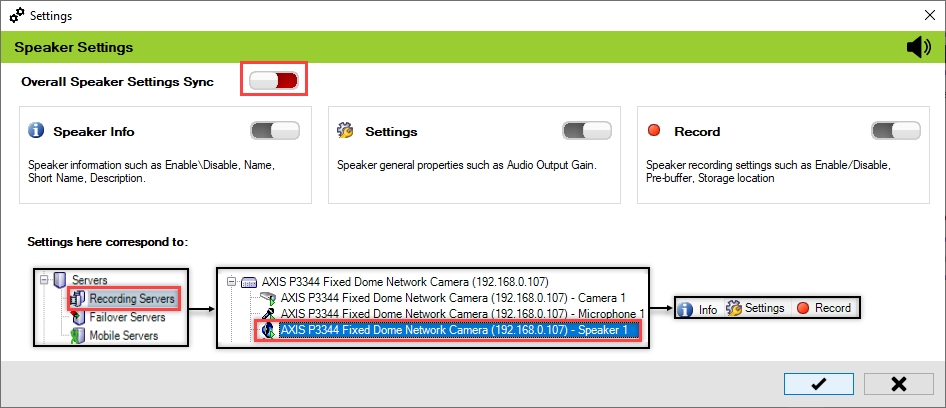

Speaker Settings Disabled
Click Save in the Milestone toolbar to save the changes.
Save

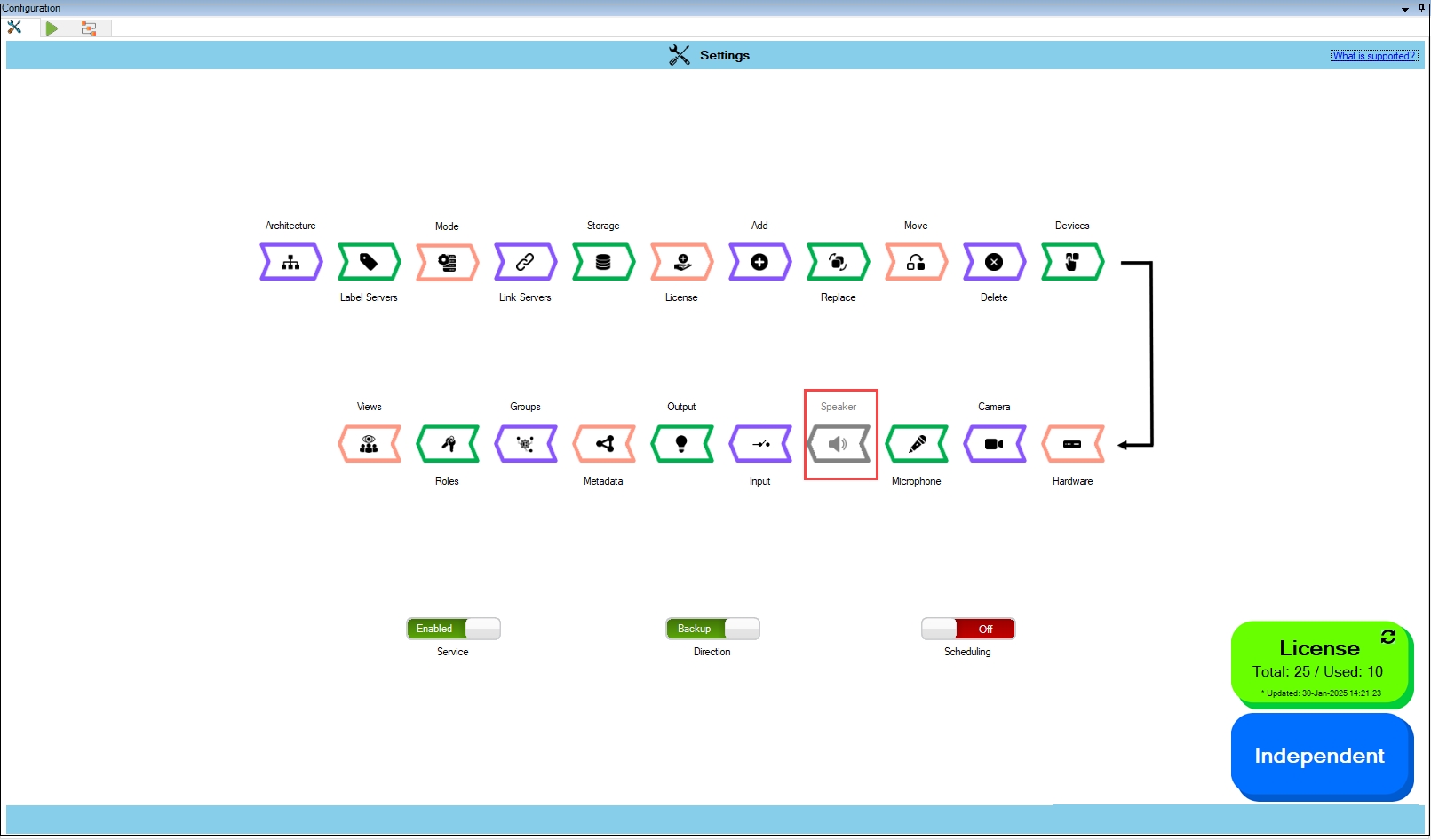

Step Result: The Speaker settings option is disabled.
