Use this option to synchronize Input settings between the Primary and Redundant sites.
Scope

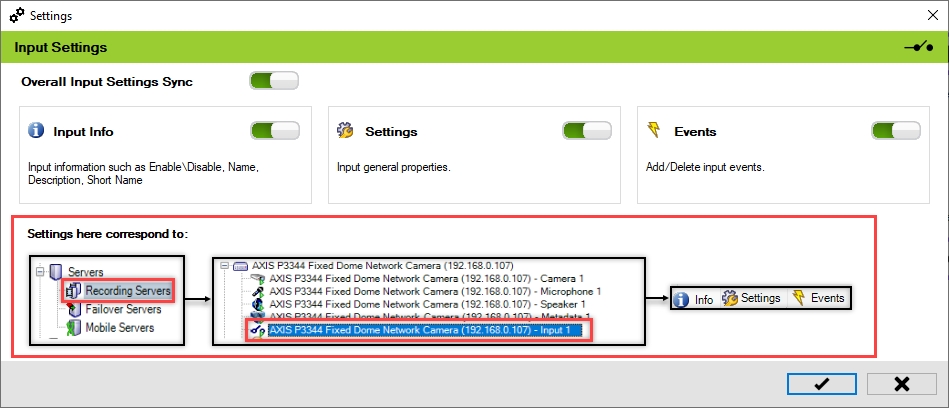

The scope is limited to RMF-licensed devices selected by the Device Selection block and to the features listed under the "Settings here correspond to" section in the picture below. The direction of synchronization depends on the direction setting. See Set Synchronization Direction. If no devices are selected in the Device Selection block, this option is disabled.

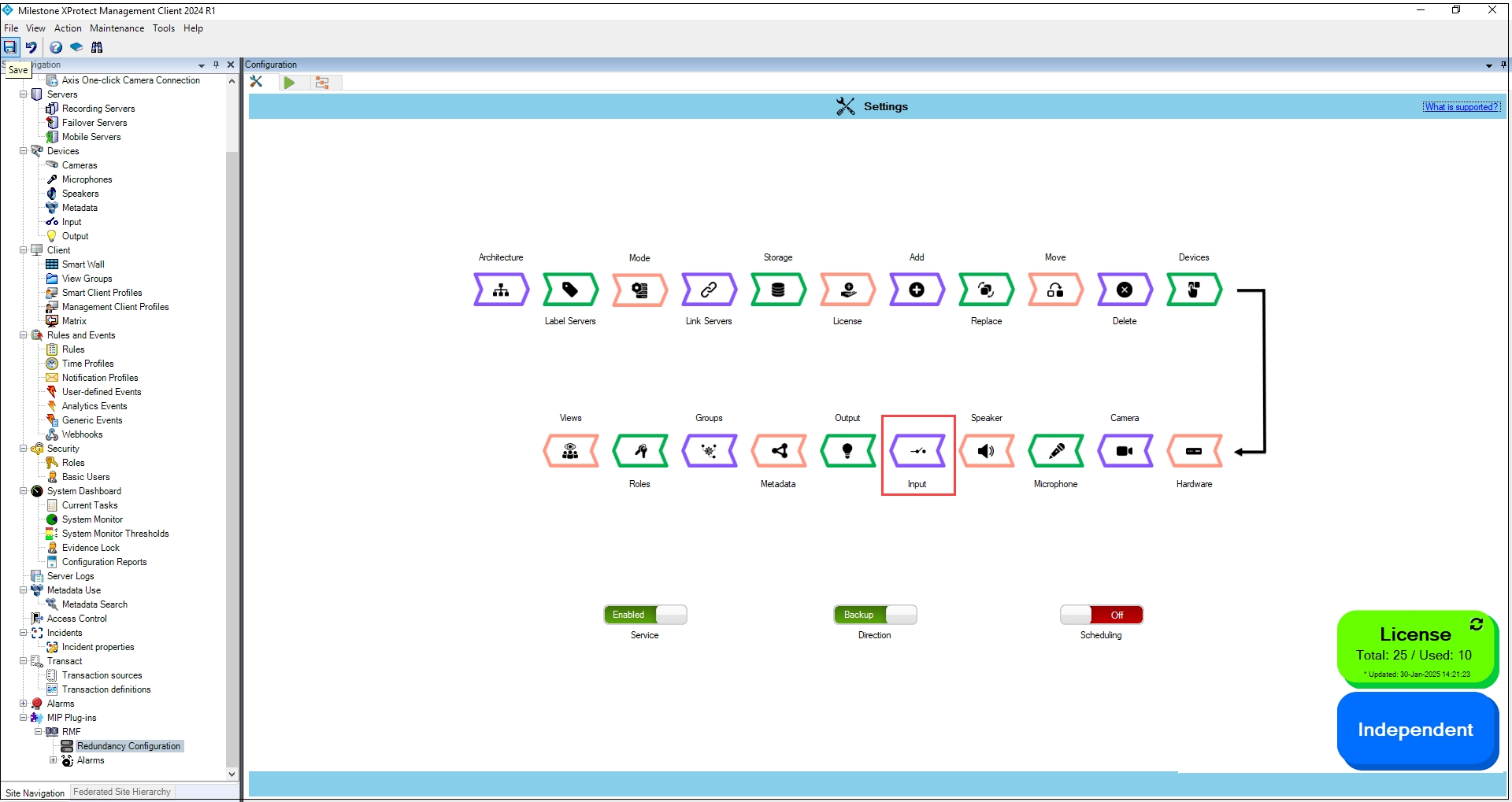

View Input Settings—Site Navigation Pane
Enable
To enable and synchronize the device input settings, perform the following steps:
Click Input.
Note: For the Input block to be clickable, at least one device must be selected from the
Devices section. For more information, refer to Device Selection

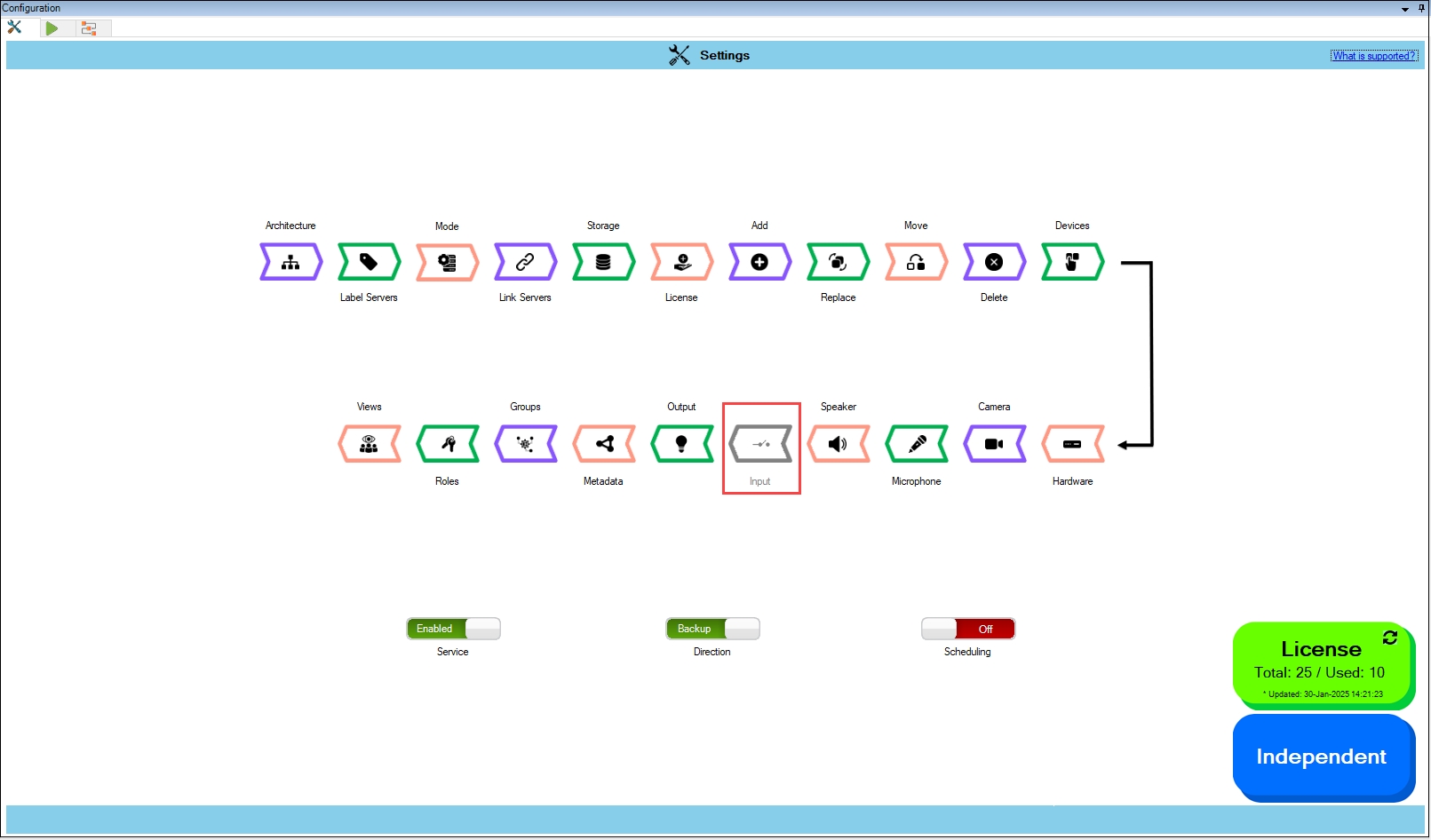

Input Option
Enable the Overall Input Settings Sync to enable all the individual device input settings. Enable/Disable different sub-settings as needed.

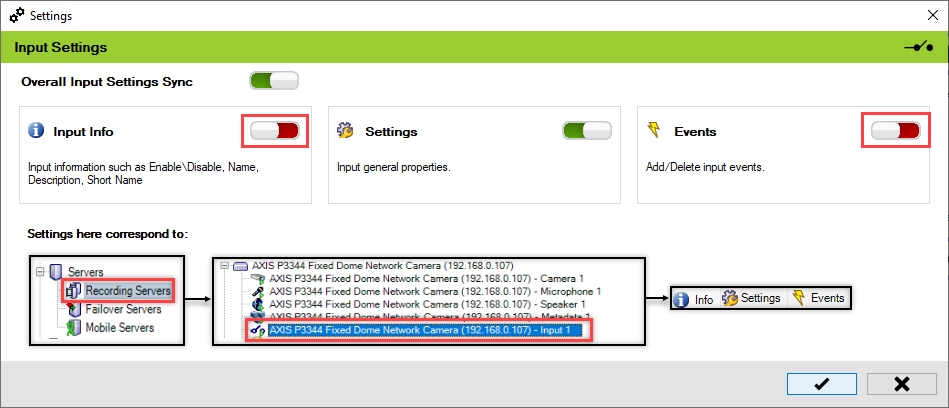

Input Settings Screen

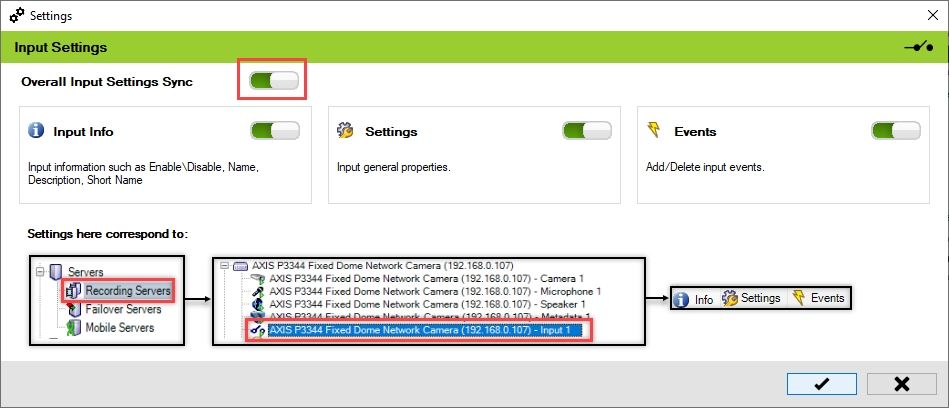

Synchronize the Required Input Settings
To retain the settings, click the Check Mark button.
Check Mark Button
Click Save in the Milestone toolbar to save the changes.
Save Icon—Milestone Tool
Disable
To turn off the device input settings synchronization, perform the following steps:
Click Input.

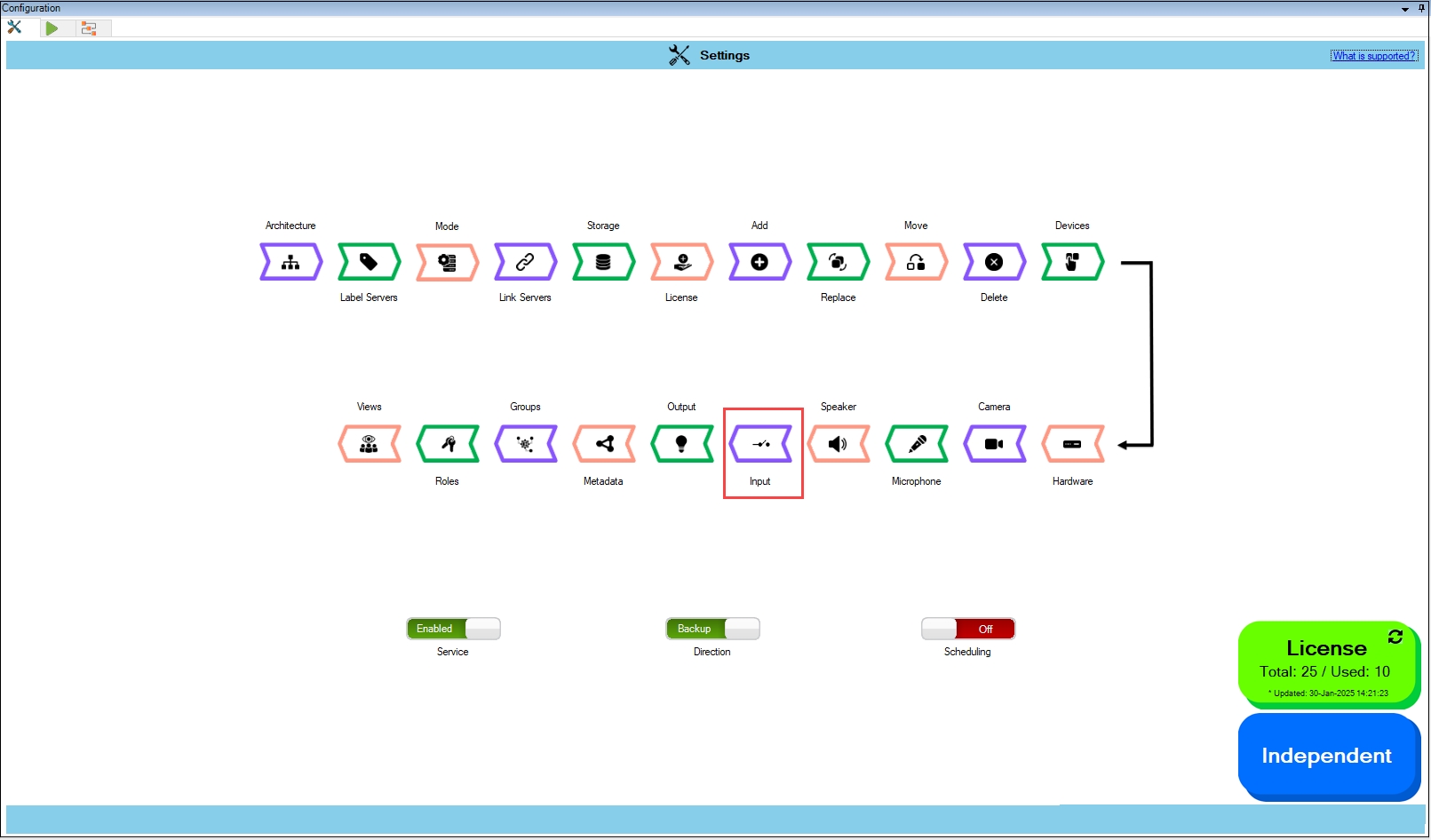

Input Option
To turn off the synchronization of the device input settings, move the toggle button to display red and click the Save icon.

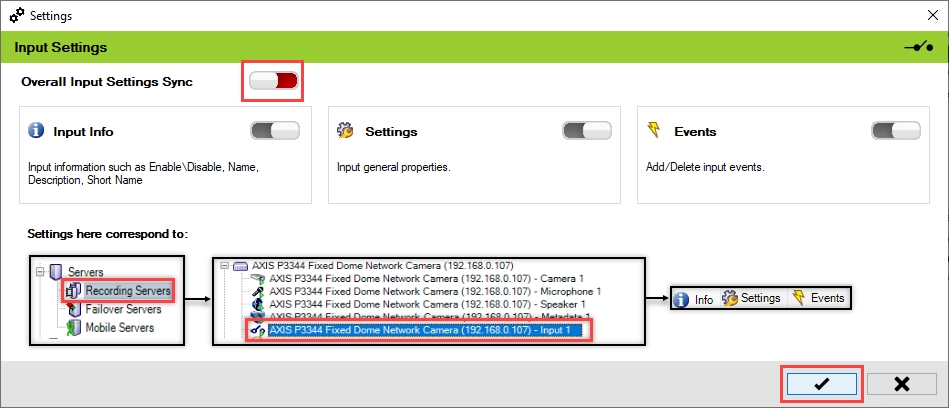

Input Settings Disabled
Click Save in the Milestone toolbar to save the changes.
Save Icon—Milestone Toolbar
Step Result: The Input settings option is disabled.
