Independent

Follow these instructions if you have two separate XProtect deployments, each with its own, independent Management Servers and SQL servers, and the sites are not federated.

Perform the following steps for an Independent architecture:

1. Select the Independent architecture option.

• For First-time configuration, the following screen will appear.

First-time Configuration Screen

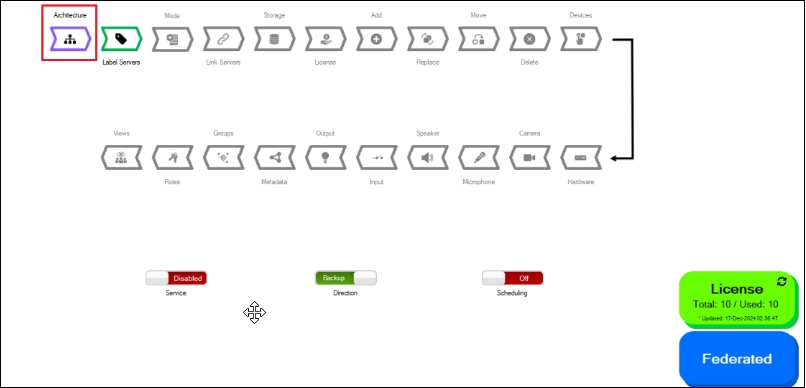

• For subsequent architectural changes, click the Architecture button on the following screen.

Architecture Screen

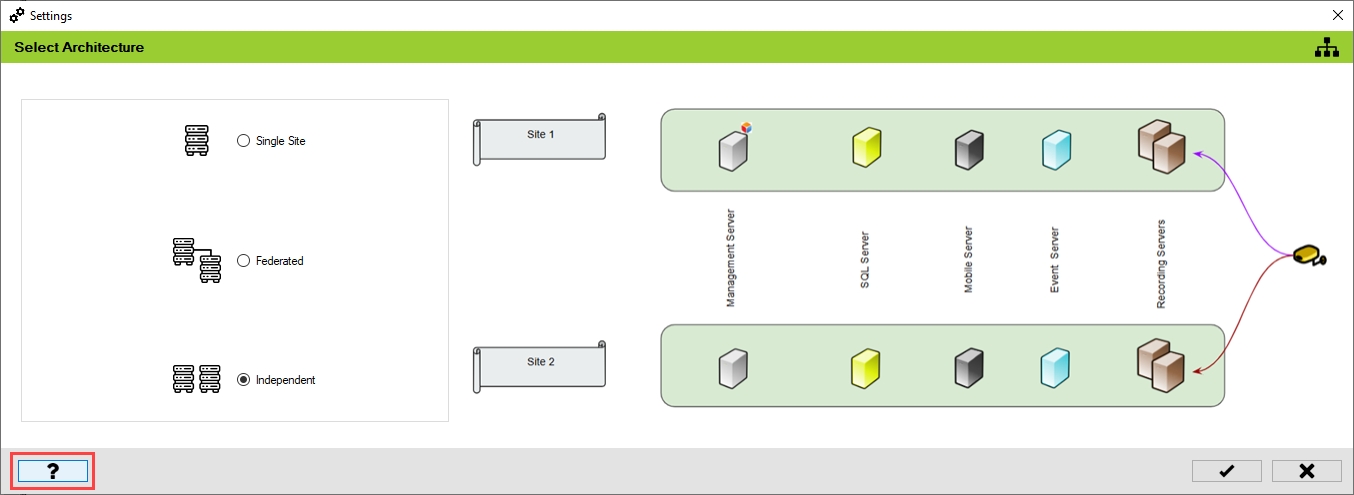

For more information, click the Help icon.

Help Icon

Help Information

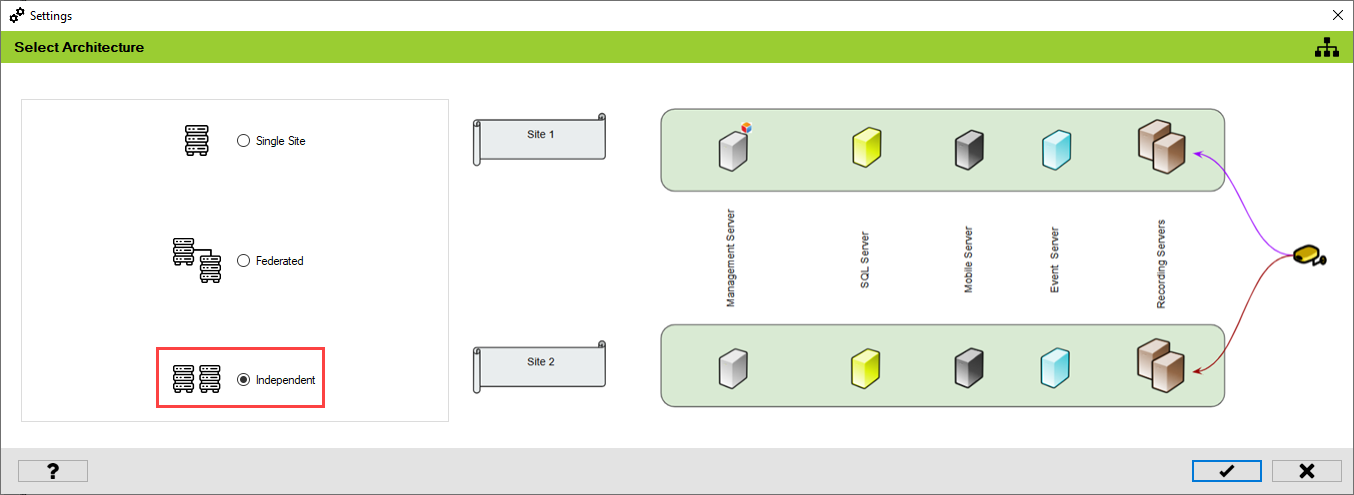

1. Choose the architecture that represents the XProtect deployment at the site. In this scenario, select Independent.

Independent Architecture Selection Screen

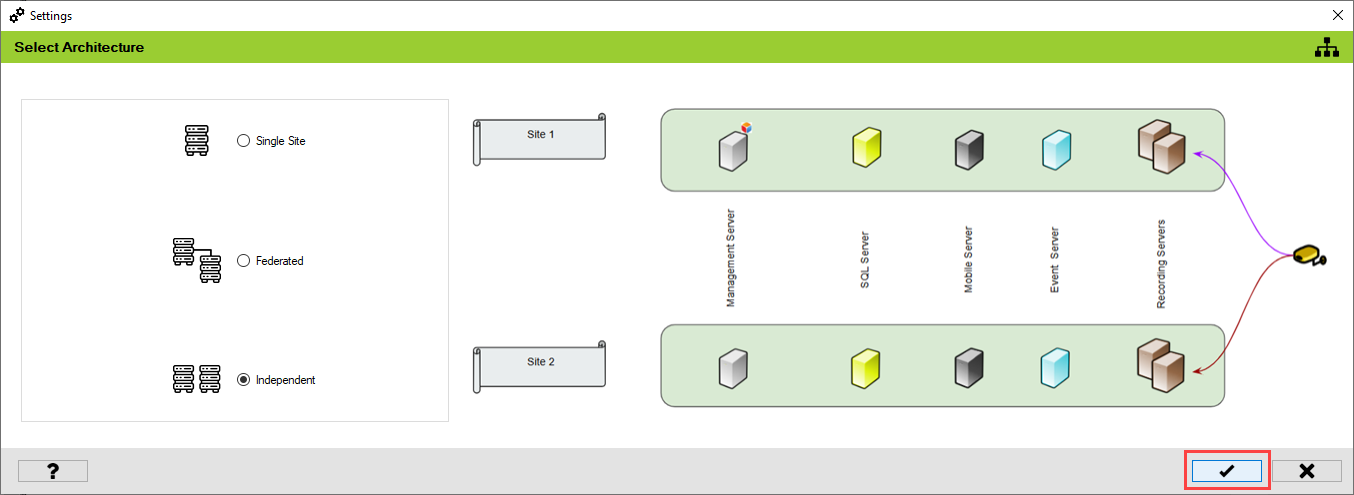

1. Click the tick mark at the bottom of the screen to save the architecture.

1. Click Yes to confirm.

Architecture Change Confirmation

Note: All the previous RMF configuration settings are cleared.

1. Click the Save icon in the top left corner of the Milestone toolbar to apply the changes.

Milestone Save Icon

Note: The following screens appear. You must perform these steps to configure the SmartSyncService.

Architecture Change Onscreen Instruction

Step 1: Navigate to System Tray -> Right-click SmartSyncService -> Set Service Logon Settings.

SmartSyncService (Step 1)

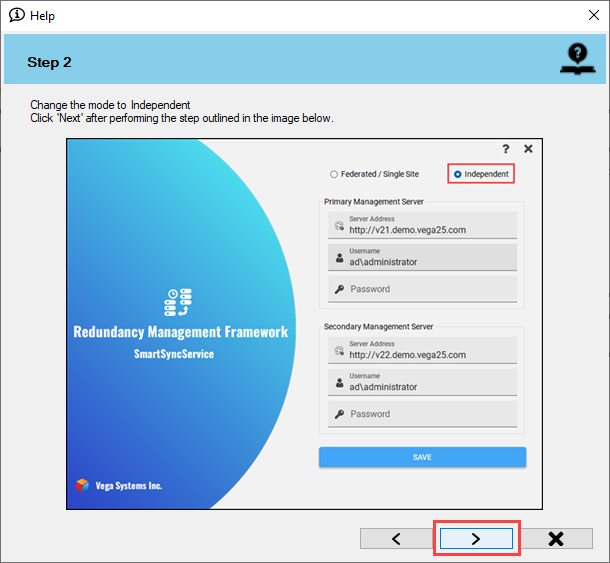

Step 2: Select Independent.

SmartSyncService (Step 2)

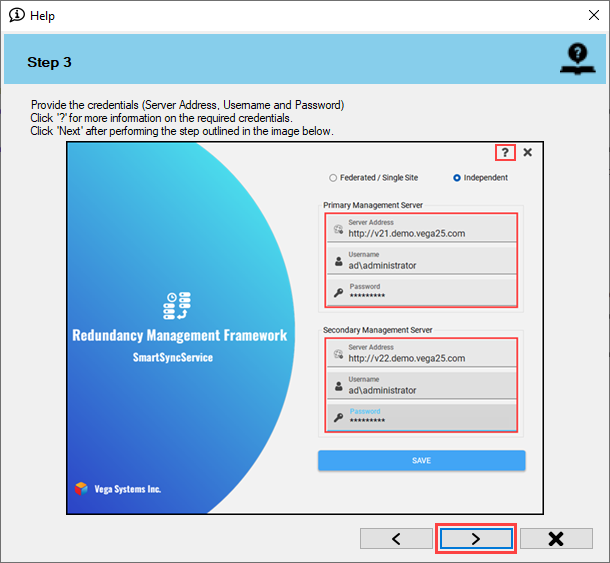

Step 3: Provide the credentials. Click the Help icon for more information.

SmartSyncService (Step 3)

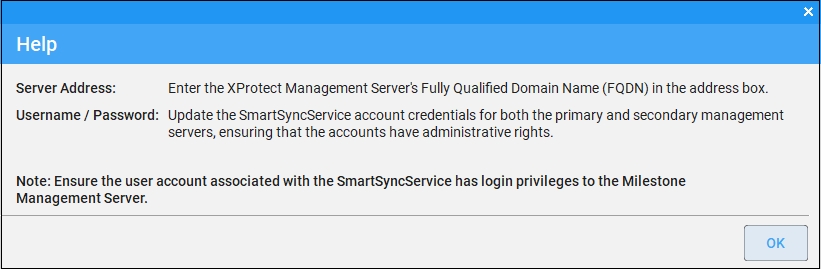

SmartSyncService (Help)

Step 4: Click Save to save the configuration.

SmartSyncService (Step 4)

1. Click OK.

SmartSyncService Restart Confirmation

Note: The service restarts with the new credentials provided.

1. Click OK.

SmartSyncService Completion

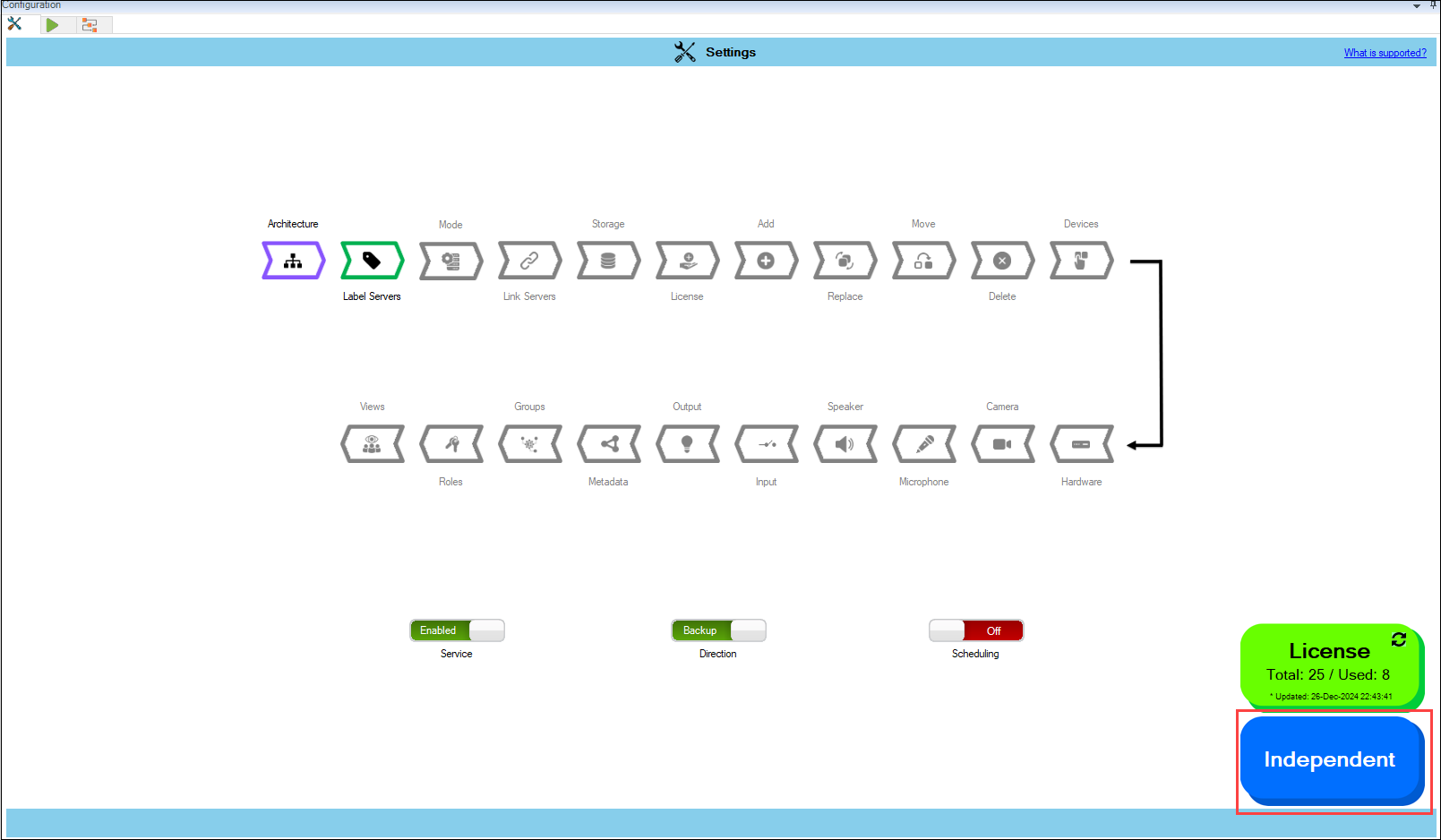

1. Verify that the Independent architecture type has been configured successfully. The selected architecture will be displayed at the bottom right.

Independent Architecture Verification Screen
