Single Site

Follow this section if your deployment has a single database. Note that clustered, failover or other HA databases are considered a single database.

Perform the following steps for a Single Site architecture:

1. Select the Single Site architecture option.

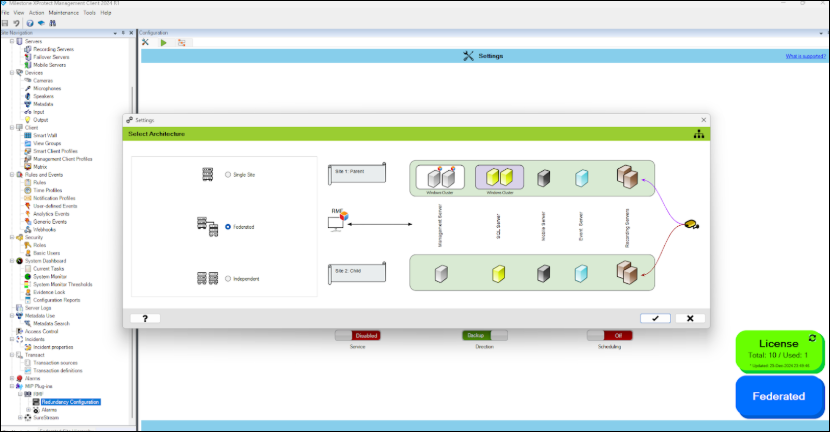

• For First-time configuration, the following screen will appear.

First-time Configuration Screen

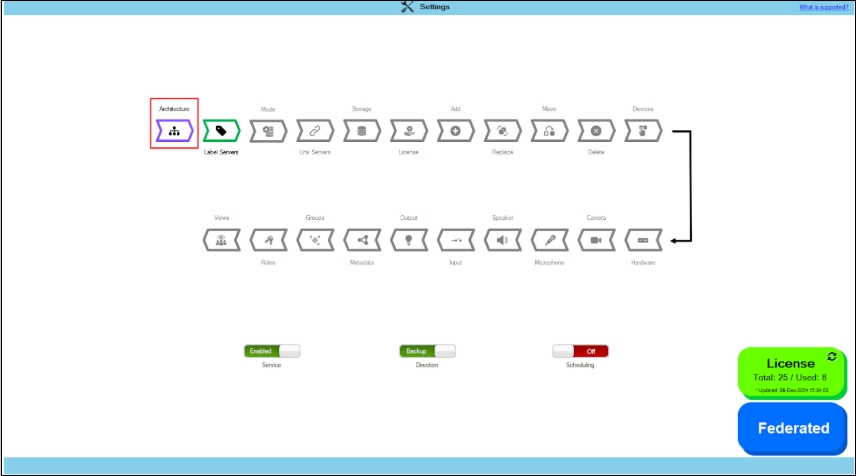

• For subsequent architectural changes, click the Architecture button on the following screen.

Architecture Screen

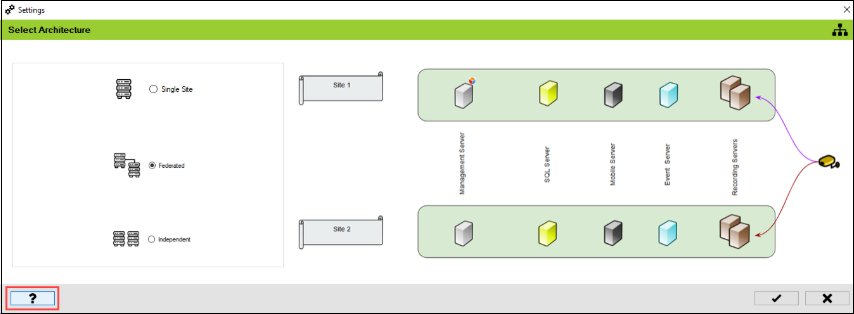

For more information, click the Help icon.

Help Icon

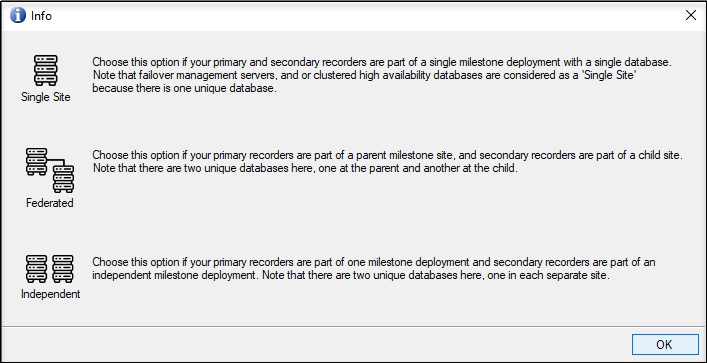

Help Information

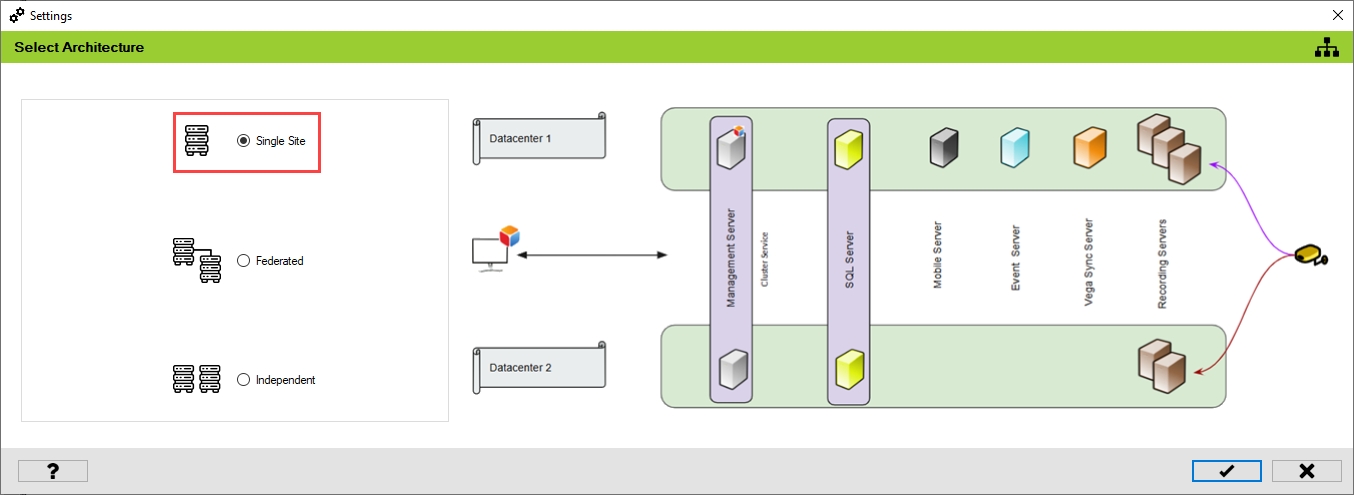

1. Choose the architecture that represents the XProtect deployment at the site. In this scenario, select Single Site.

Single Site Architecture Selection Screen

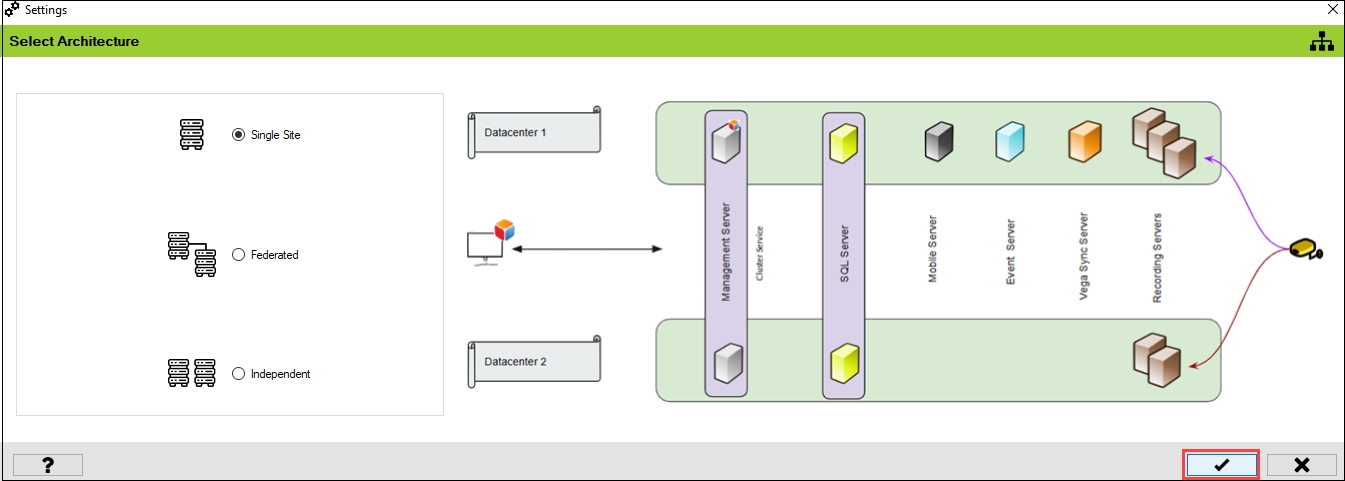

1. Click the tick mark at the bottom of the screen to save the architecture.

Save Single Site Architecture

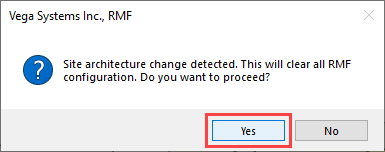

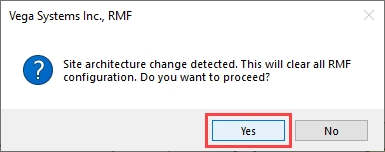

1. Click Yes to confirm.

Architecture Change Confirmation

Note: All the previous RMF configuration settings are cleared.

1. Click the Save icon in the top left corner of the Milestone toolbar to apply the changes.

Milestone Save Icon

Note: The following screens appear. You must perform these steps to configure the SmartSyncService.

Architecture Change Onscreen Instruction

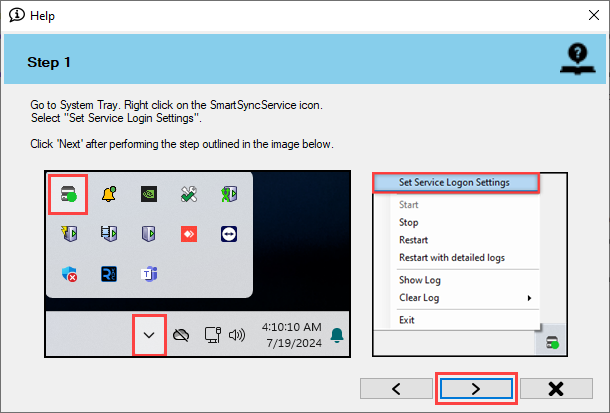

Step 1: Navigate to System Tray -> Right-click SmartSyncService -> Set Service Logon Settings.

SmartSyncService (Step 1)

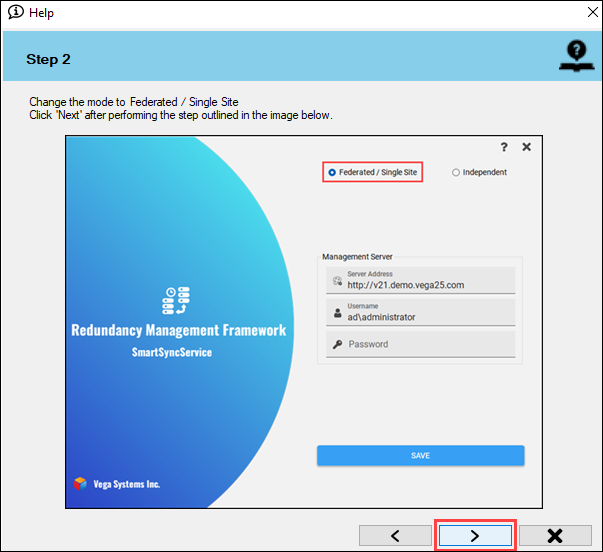

Step 2: Select Federated/Single Site.

SmartSyncService (Step 2)

Step 3: Provide the credentials. Click the Help icon for more information.

SmartSyncService (Step 3)

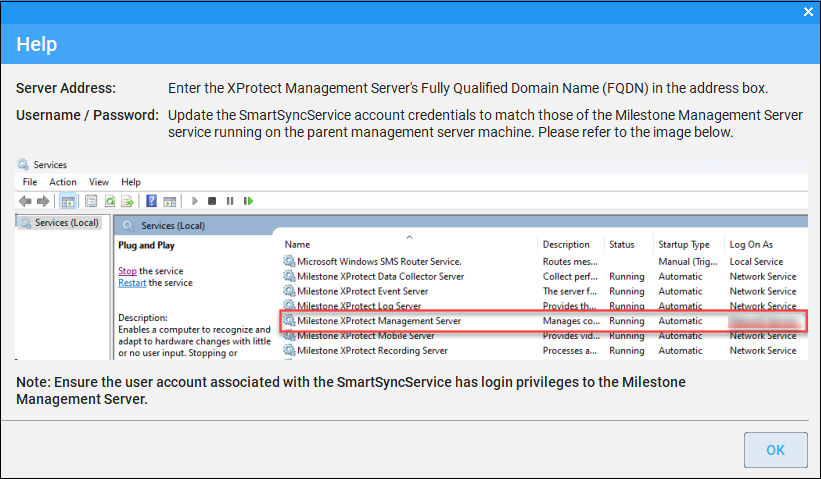

SmartSyncService (Help)

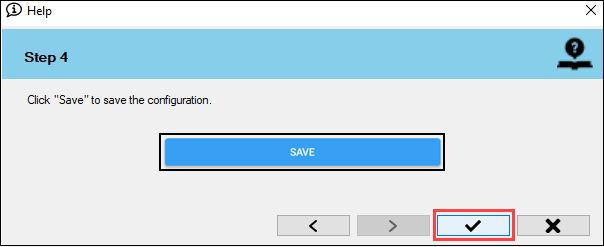

Step 4: Click Save to save the configuration.

SmartSyncService (Step 4)

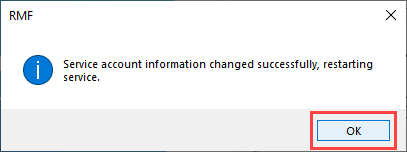

1. Click OK.

SmartSyncService Restart Confirmation

Note: The service restarts with the new credentials provided.

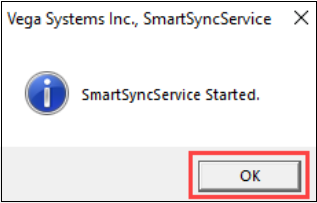

1. Click OK.

SmartSyncService Completion

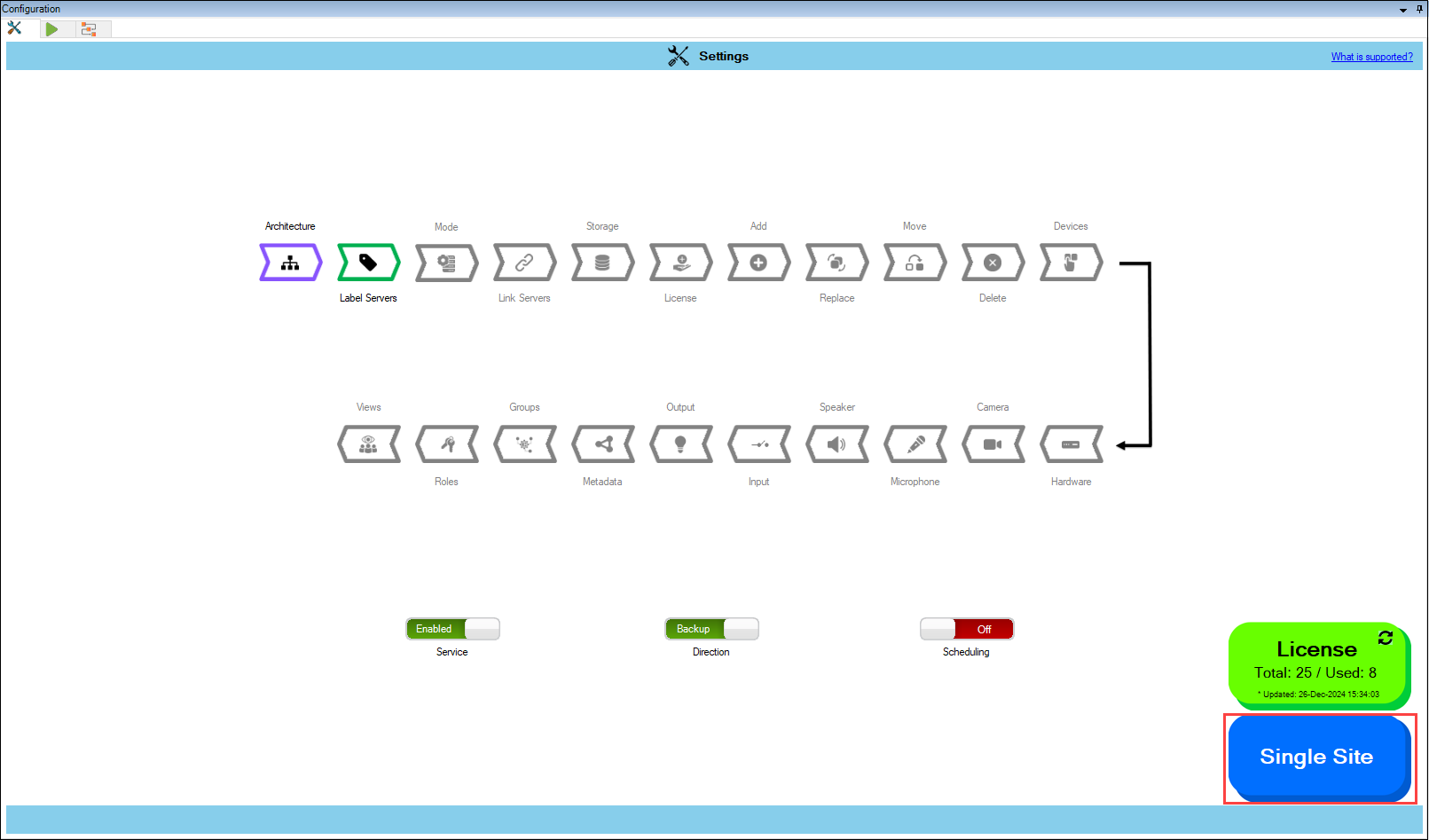

1. Verify that the Single Site architecture type has been configured successfully. The selected architecture will be displayed at the bottom right.

Single Site Architecture Verification Screen
